A tiny Z80 based computer

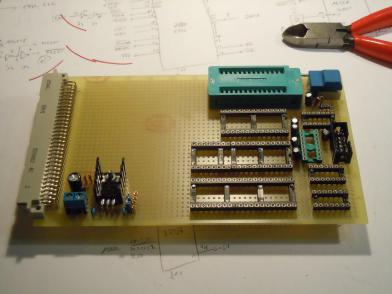

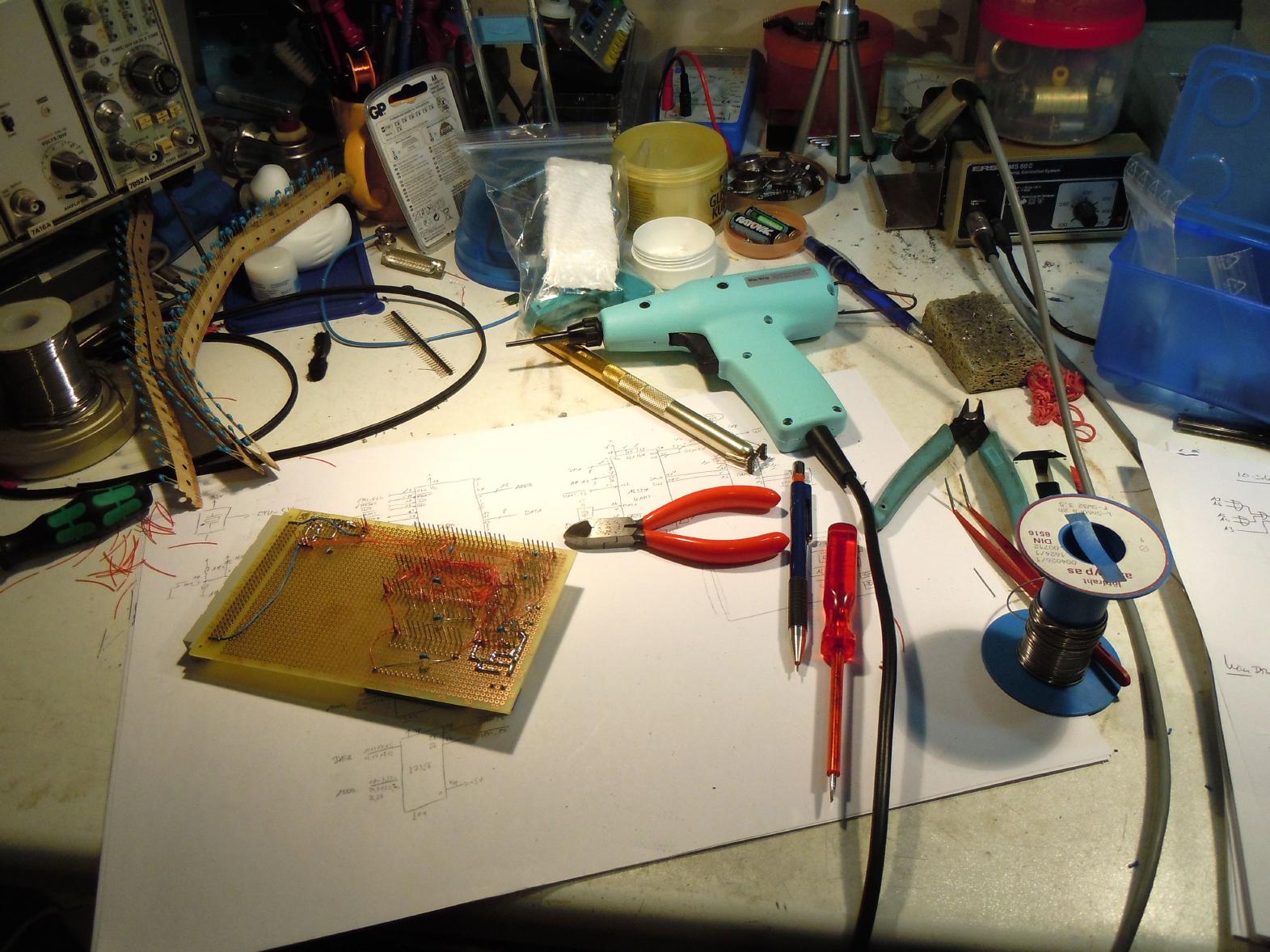

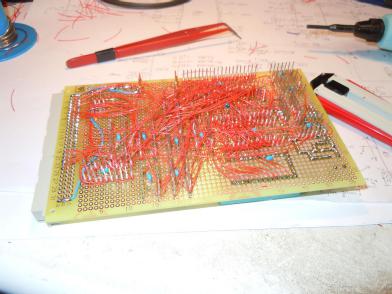

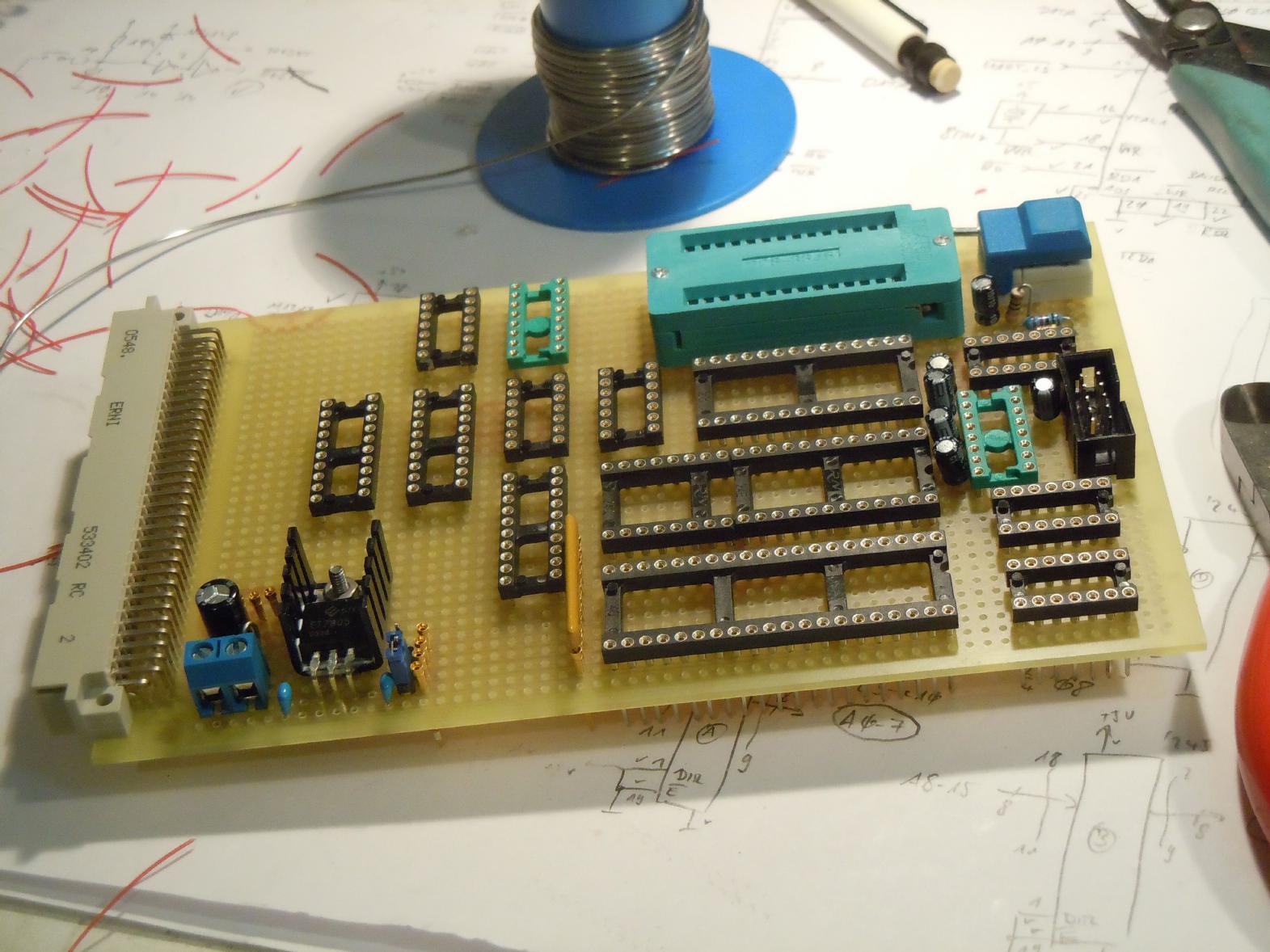

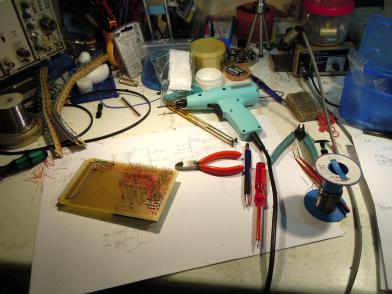

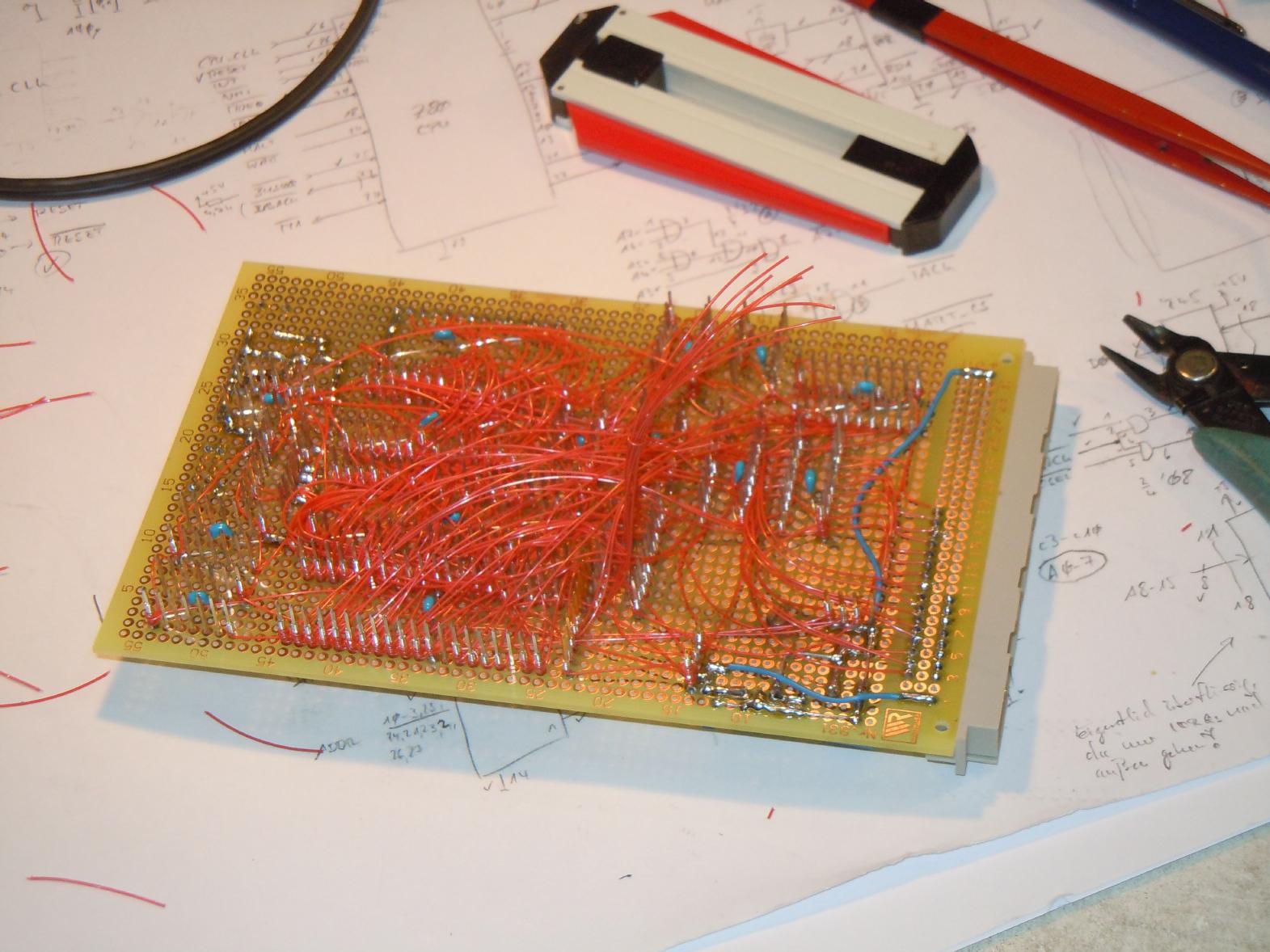

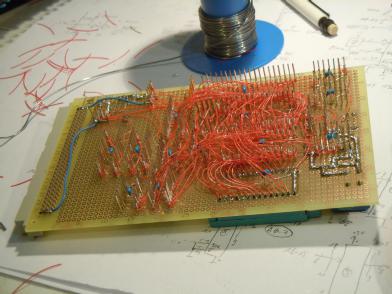

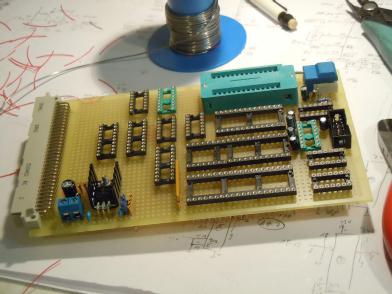

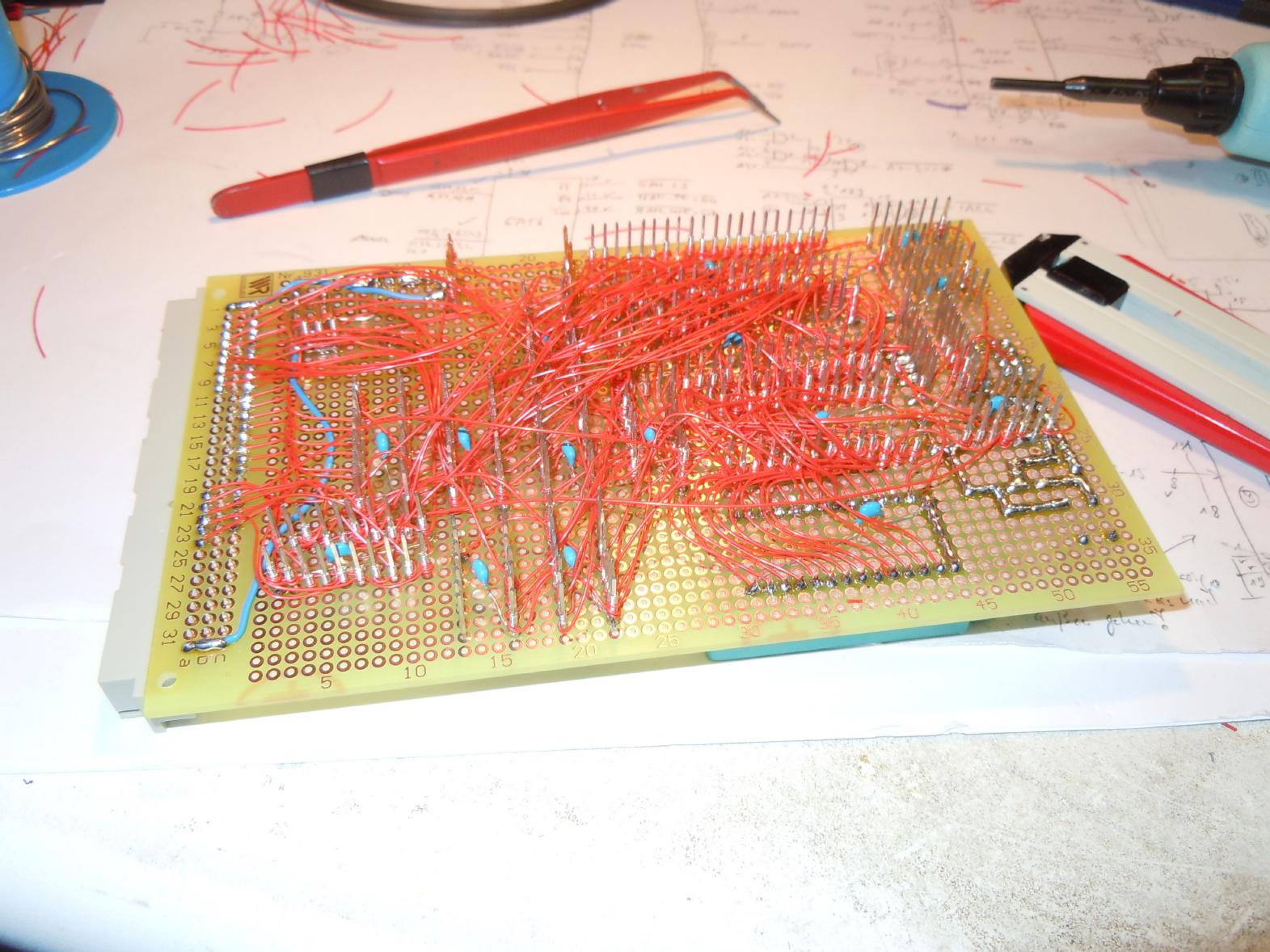

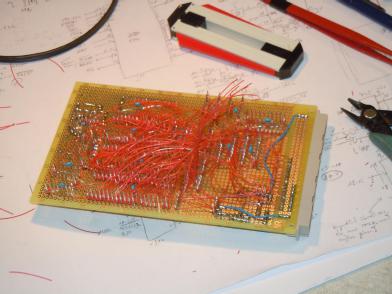

A rather small Z80 based computer with the following features: Z80 single board computer IDE controller FAT file system (currently read only) in Z80 assembler In September 2011 I somehow got the feeling that I just HAD to build a small Z80 based computer again. My last homebrew Z80 was built when I was still in school (more than 20 years ago) and somehow I felt a bit nostalgic and missed the (truly) good old times when computers were small, rather simple, easy to understand and program. Times when writing software meant writing assembler code and not installing several GB of a development package which creates files no smaller than several MB. So I searched for useable parts in my hardware repository and found everything necessary to build a small (tiny, in fact) Z80 based computer. Since I love wire wrapping, I decided to build the computer on a single Euro card using wire wrap sockets where ever possible (if you happen to have wire wrap sockets or wire etc. and would like to give it to a good home I would love to take care of it - I am running low on wire wrap parts and it is next to impossible to find new sockets etc.). Designing and building the card took two evenings of about 5 hours each, and debugging took another, third evening (there were only four wiring errors but I made a software error in configuring the UART which was a bit hard to find). The left row of the board shown above contains the TTL clock oscillators for the Z80 CPU (4 MHz) and the 16C550 UART (1.8432 MHz), a MAX232 for the serial line, a 74LS14 for the (simple) reset circuit and the reset push button. The next row contains the Z80 CPU, the 16C550 UART, a 62256 32kB RAM and a 27(C)512 32kB EPROM in a ZIF socket. The remainder of the board contains a simple voltage regulator with a 7805, several bus drivers (74LS245) and some address select logic. The following pictures give an impression of the process of building this simple computer:

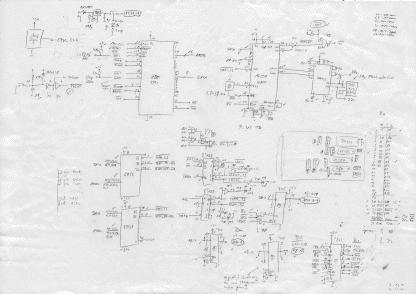

The schematic of the computer is quite simple and straight forward. Since I wanted to build a really simple computer, there is no provision for DMA transfers and the interrupt logic has not been tested by now. Please note that there is a tiny error in the schematic drawing: The TTL oscillator driving the UART is a 1.8432 MHz type and not an 8 MHz oscillator as noted in the drawing! (Sorry - I forgot to correct this.)
Here is the parts list for the computer (excluding sockets - I recommend to use precision sockets): TTL clock oscillator 4 MHz (for Z80 CPU - depending on your model, higher clock rates are possible) TTL clock oscillator 1.8432 MHz (for UART) MAX232 level converter for the serial line 74LS14 (for reset-circuitry) Push button for reset Z80 CPU (at least "A" variant which is capable of running at 4 MHz) 16C550 UART 62256 static RAM, 32 kB 27(C)256 EPROM (you might want to use a ZIF socket for the EPROM to facilitate insertion and removal of EPROMs during software development) 74LS08 (quad AND gate) 74LS139 (double 1-out-4 selector) 74LS32 two times (quad OR gate) 74LS245 four times (buffers for the bus - these are optional and only necessary if you plan to use external devices on the bus) 74LS07 (LED driver) 100 nF capacitors (16 times - one for each IC) 1N4148 diode (reset circuit) 10 uF capacitor (reset circuit) 10 Ohm resistor (reset circuit) 10 kOhm resistor (reset circuit) 1 uF capacitor (5 times - needed by the MAX232) 4.7 kOhm resistors (four times - needed to pull up some control lines - alternatively you can use a resistor array as I did) 10 pin socket or something equivalent for the serial line 100 uF capacitor (voltage regulator) 100 nF capacitor (voltage regulator) 7805 linear voltage regulator, 5 V 3mm LEDs, 1 green, 2 yellow, 2 red) 220 Ohm resistor, 5 times (LEDs) Connector for power supply Experimental Euro-card (160 mm times 100 mm) VG connector, 64 or 96 pins As stylish as a paper tape reader/puncher or at least a cassette drive would be, I decided to implement a simple IDE interface to use cheap and ruggedized Compact Flash cards for mass storage. After reading quite a bit about the IDE interface and having a look at other people's interfaces, I decided not to reinvent the wheel and implement the controlled developed by Phil from Retroleum since his design is clean and simple and features a really nice flipflop logic to generate the various control signals instead of RC delay circuits etc. as found in other designs.
The picture on the right shows the schematic of the IDE controller. Please note that there is an error that I forgot to correct on the schematic: The two eight bit latches on the lower right are of type 74LS374 and NOT (!) 74LS574 as written. (74LS574 would work, too, but have a completely different pinout!) The circuit is described in detail on Phil's page at Retroleum. My implementation only differs with respect to an additional address decoder build around a 74LS85 4 bit comparator and a four place DIP switch. Currently my IDE controller is located at address $10 in the IO address space of the Z80 processor.

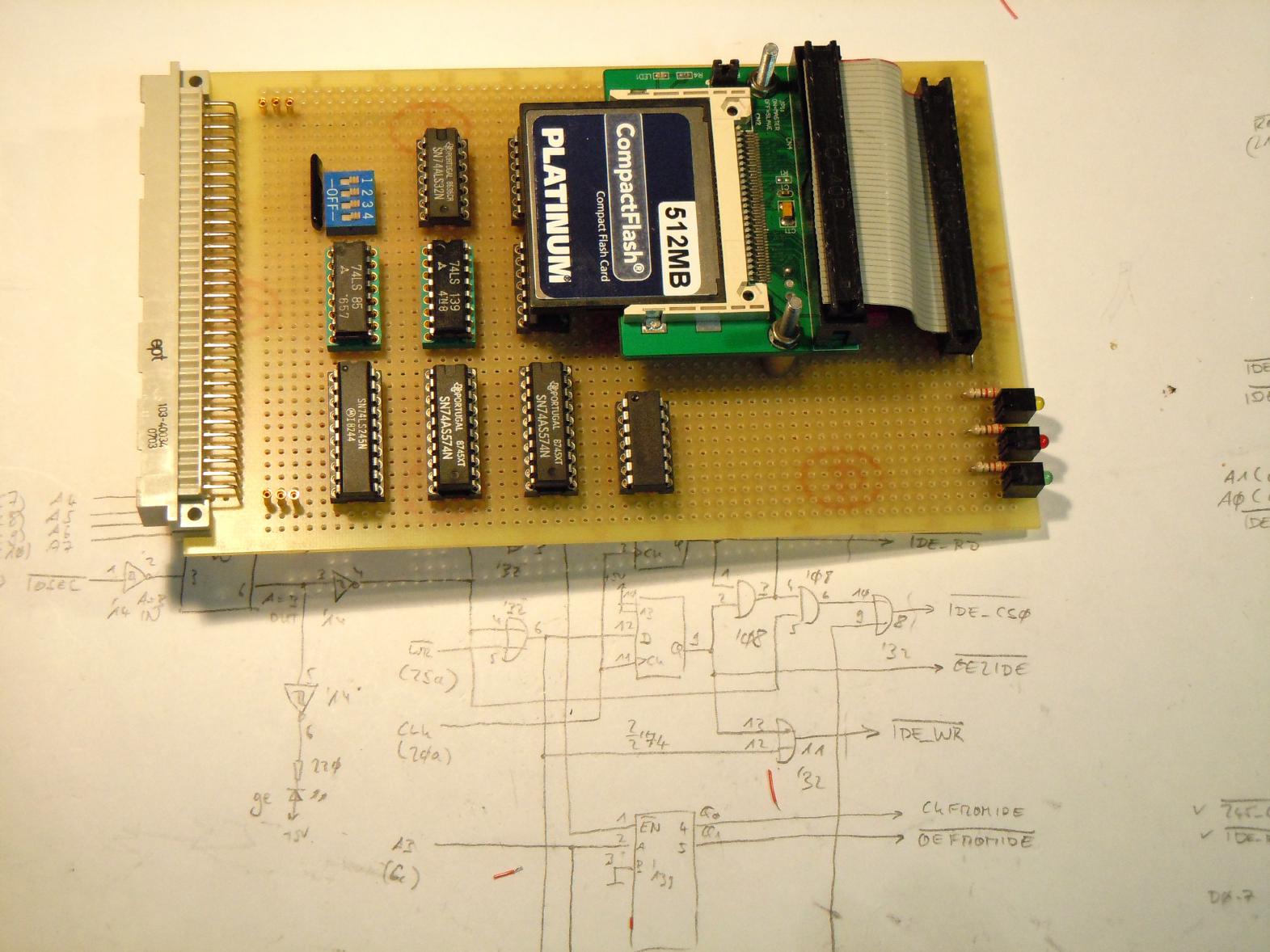

	The picture on the left shows the completed IDE controller (which drove me nuts during debugging since I managed to handle the two select signals for the IDE devices incorrectly... sigh).

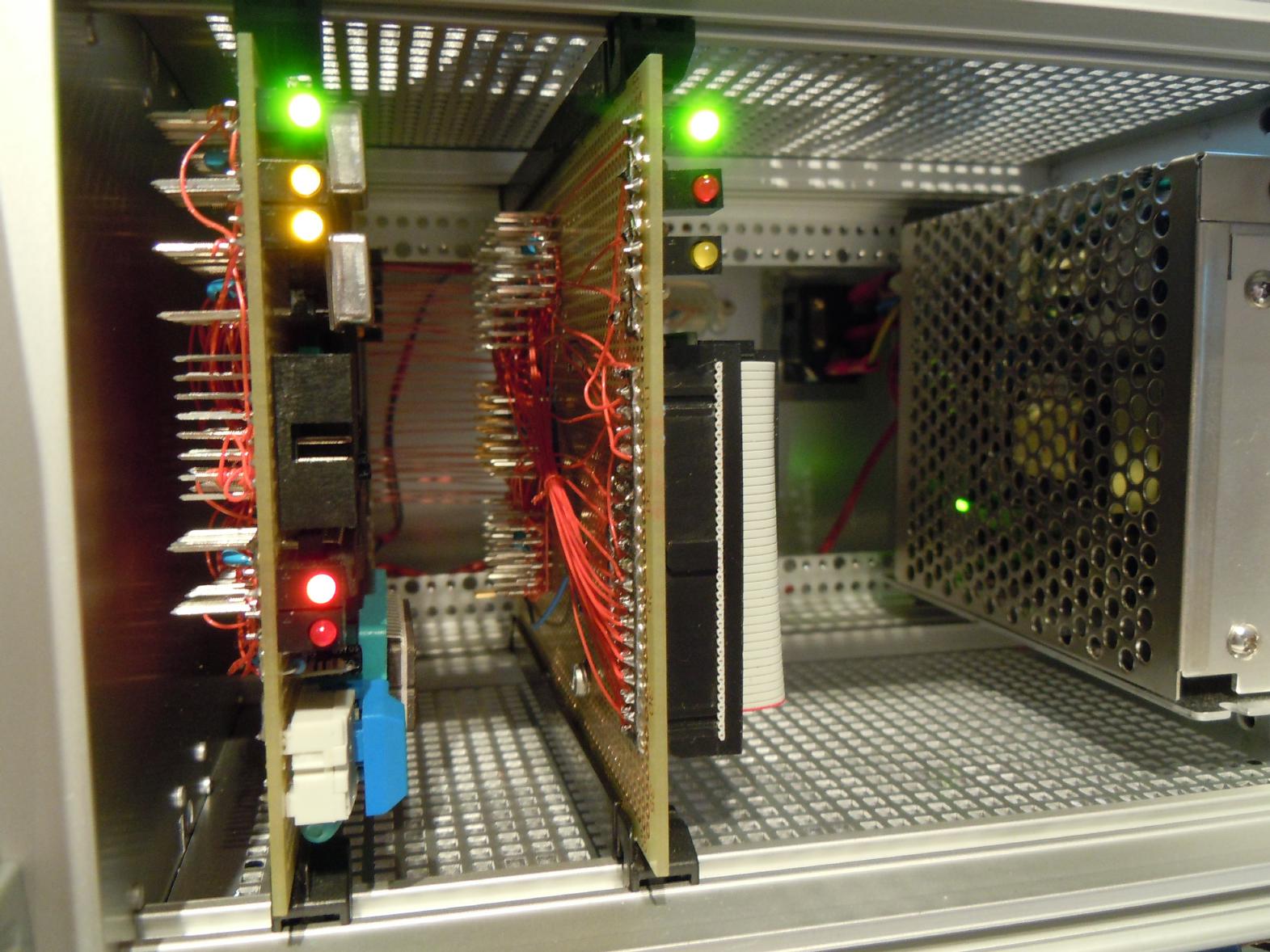

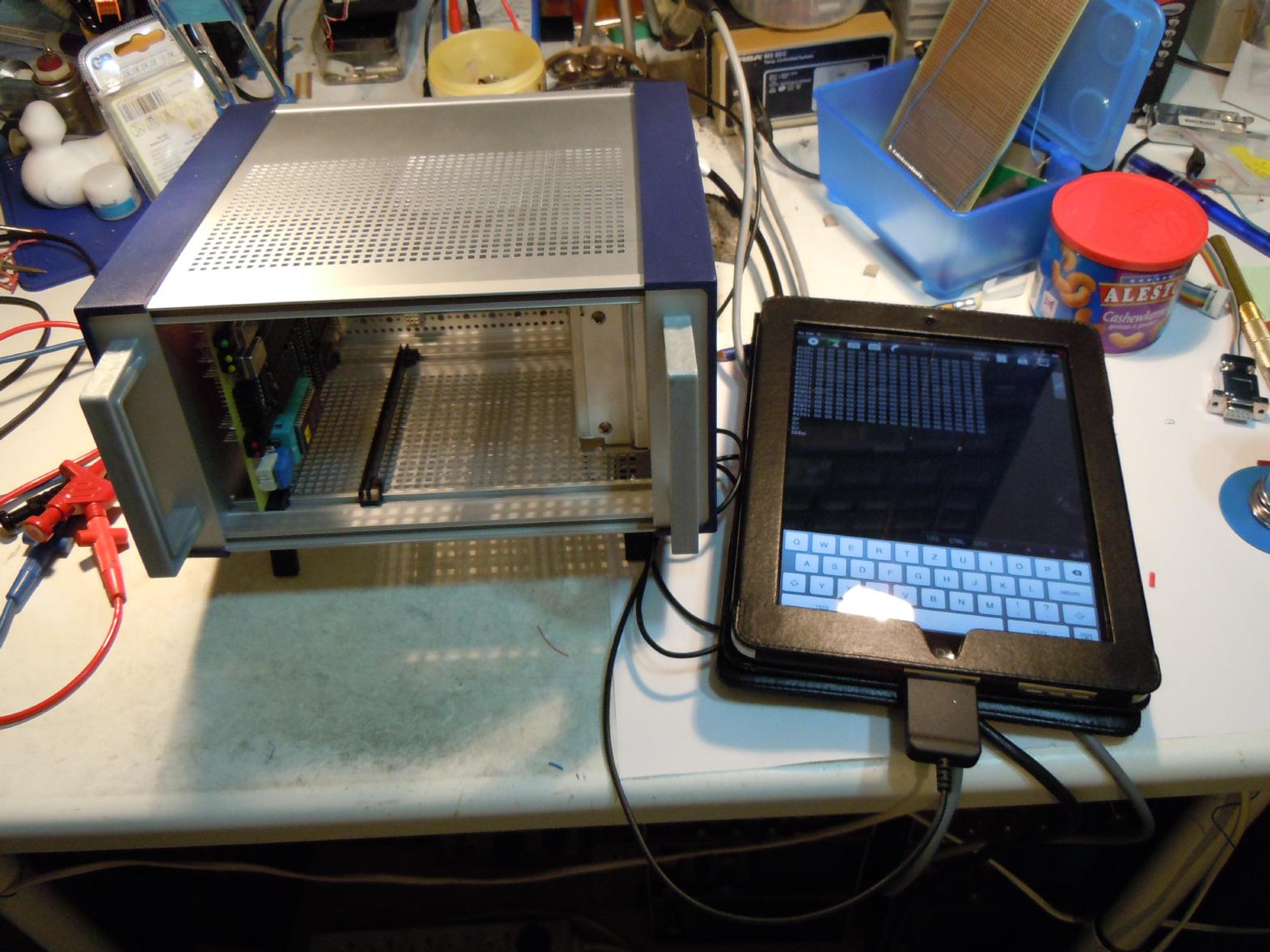

Since the tiny Z80 computer consists of two boards by now, an enclosure was needed. I decided to use a 10 inch standard enclosure (had I known before how much fiddling would be required to build the enclosure out of the many parts delivered by my supplier, I might have settled for something else :-) ). The picture on the right shows the first picture of the CPU card in its new housing. The iPad is used as terminal (a very useful feature :-) ).

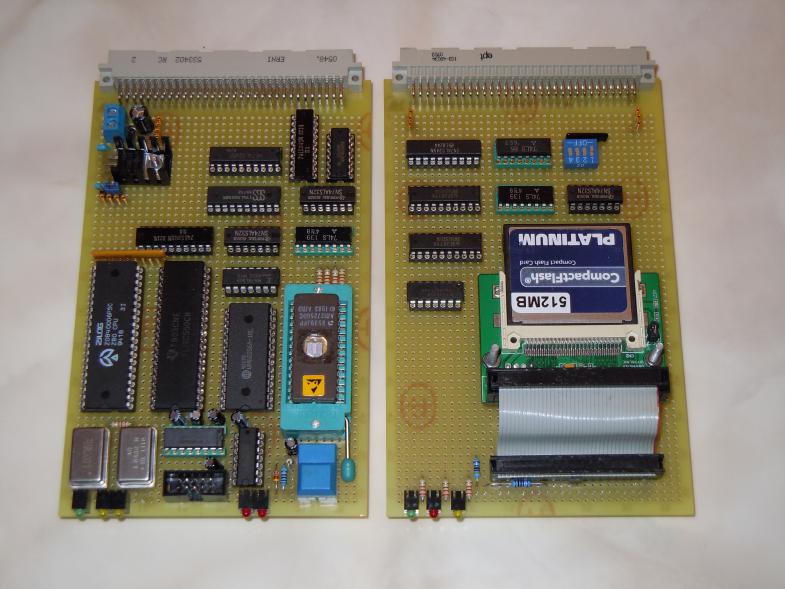

	The picture on the left shows both cards, the CPU board on the far left and the IDE controller right next to it, in operation. By the way - at first I thought about building a simple power supply with a linear regulator - then I wondered if I should use an old PC power supply and then I realized that new switching power supplies, capable of delivering 5V with 8A, cost only about 18 EUR... That is the reason for the small and modern power supply on the right hand side of the enclosure.

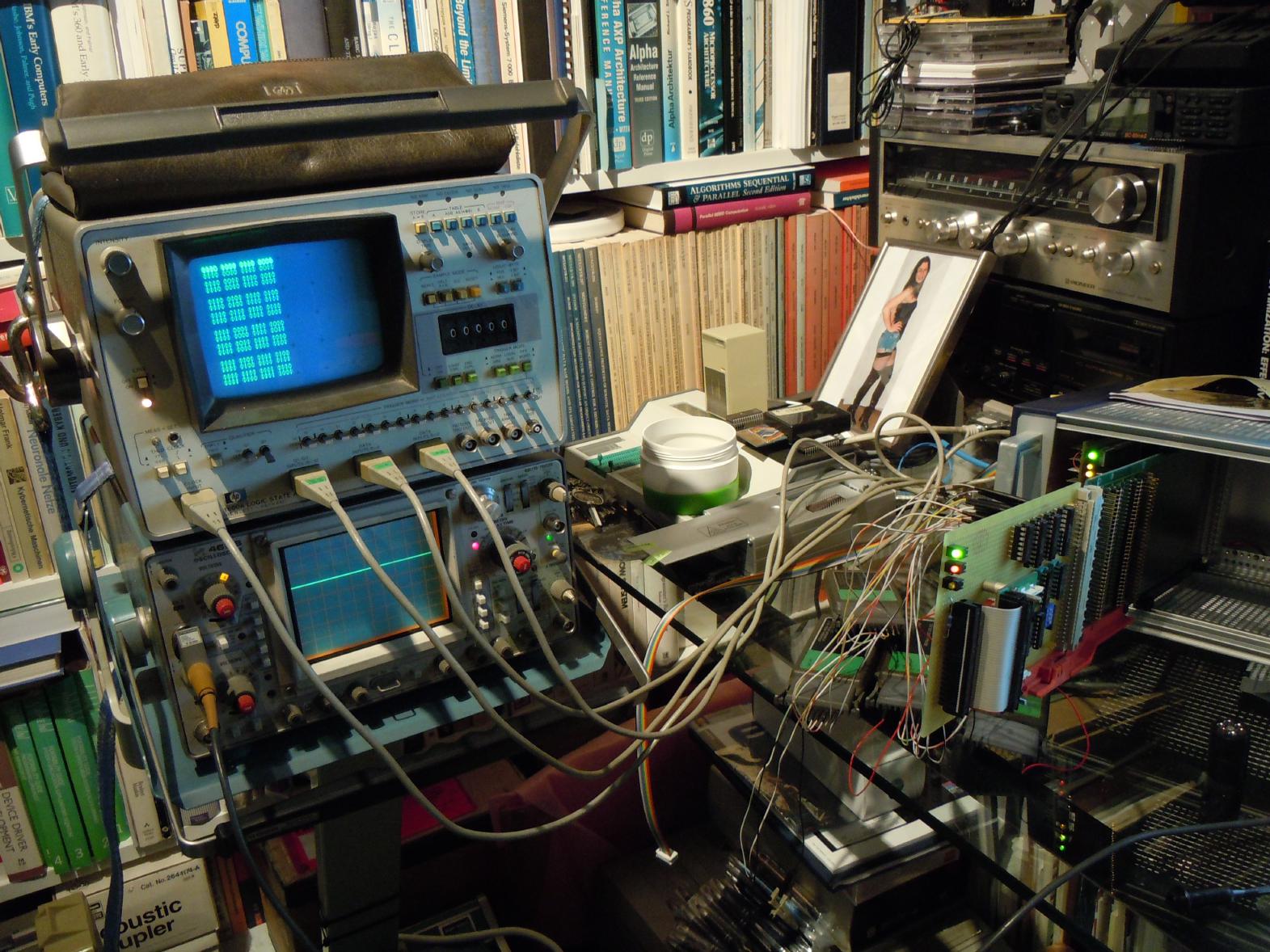

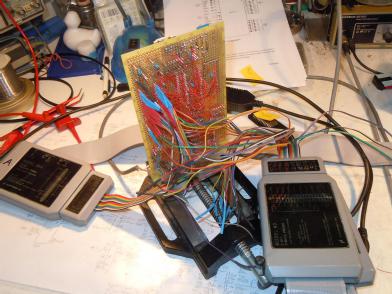

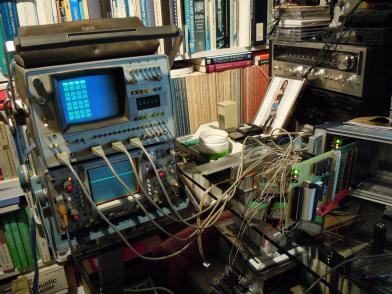

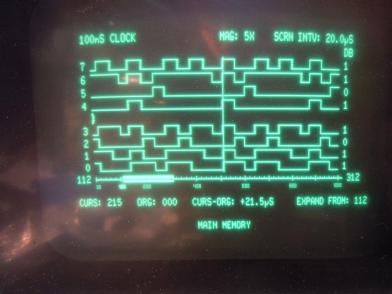

While the processor card worked quite right out of the box, the IDE controller was bit of a challenge since there were two independent bugs buried in its logic. The first problem was that the 74LS32 quad OR gate chip was defective (this is all the more puzzling since it was a new device). But more difficult to find was a mistake I did concerning the two select lines of the IDE device. I "thought" that I had understood the IDE logic and wired one of the /CS-lines to ground as I would have done with any TTL chip requiring two chip select lines. I did not realize that the two /CS lines act in fact as yet another address line and allow access to the upper registers of the IDE device. Fixing this bug was extremely simple, but finding it was hard since I was so sure that grounding the second /CS line was the right thing to do. :-)
In order to make any use at all of such a small homebrew computer one needs a small operating system, a so called "monitor" in fact. Writing the monitor took another couple of evenings up to now. Currently it occupies $166C bytes of memory (5740 bytes), so the 32 kB EPROM is not really well utilized at the moment. :-) The monitor is quite simple: All commands are collected into functional groups like CONTROL, DISK etc. The first letter typed at the command prompt selects the desired group while the second letter selects the command to be executed. The FAT file system implementation currently only supports reading files and displaying directory listings but this simplifies development a lot since one can now cross assemble/compile on another system and transfer the binaries by means of a CompactFlash card. :-) Currently the monitor supports the following commands: Control group: Cold start: Restart the computer, clearing memory. Info: Print monitor version. Start: Start a machine program. Warm start: Restart the computer without clearing memory. Disk group: Info: Print disk information. Mount: Mount the disk. Transfer: Initiate a transfer from or to disk: Read: Read sectors from disk into memory. Write: Write sectors from memory to disk. Unmount: Unmount the disk. File group: Cat: Print a file's contents to STDOUT. Directory: Print the disk directory. Load: Load a file's contents into memory. Help: Print help. Memory group: Dump: Dump a memory region - the user is asked to enter a start and end address. Examine: Examine individual memory locations. After entering an address, the user can press the space bar to read the next memory cell or press any other key which will terminate the command. Fill: Fill a memory area with a constant value. Intel hex load: Load the contents of an Intel Hex file into memory. This is really useful for testing newly developed software. Load: Load memory locations manually - after entering a start address, bytes in hexadecimal notation are read and stored in successive memory cells until a non-hexadecimal character will be entered. Register dump: Dump the current contents of both register banks. Working with this simple monitor looks like this: Simple Z80-monitor - V 0.8 (B. Ulmann, Sep. 2011 - Jan. 2012) Cold start, clearing memory. Z> DISK/MOUNT FATNAME: MSDOS5.0 CLUSIZ: 40 RESSEC: 0008 FATSEC: 00F0 ROOTLEN: 0200 PSIZ: 003C0030 PSTART: 00001F80 FAT1START: 00001F88 ROOTSTART: 00002168 DATASTART: 00002188 Z> FILE/DIRECTORY Directory contents: ------------------------------------------- FILENAME.EXT DIR? SIZE (BYTES) 1ST SECT ------------------------------------------- _~1 .TRA 00001000 000021C8 TRASHE~1. DIR 00000000 00002188 SPOTLI~1. DIR 00000000 00002208 FSEVEN~1. DIR 00000000 00002408 TEST .TXT 00000013 00002688 FAT_1 .ASM 0000552C 000026C8 MEMO .TXT 00000098 00002748 TEST210 .TXT 00000210 00002788 TEST1F0 .TXT 000001F0 00002DC8 TEST200 .TXT 00000200 00002E08 GROSS .TXT 0000CB5A 00003488 Z> FILE/CAT: FILENAME=TEST.TXT 123 ich bin so frei Z> FILE/LOAD FILE: ADDR=C000 FILENAME=TEST.TXT 0013 bytes loaded. Z> MEMORY/DUMP: START=C000 END=C01F C000: 31 32 33 20 69 63 68 20 62 69 6E 20 73 6F 20 66 123 ich bin so f C010: 72 65 69 00 00 00 00 00 00 00 00 00 00 00 00 00 rei............. Z> The source of the monitor can be found here: ;**************************************************************************** ; ; Small monitor for the Z80 single board computer consisting of 32 kB ROM ; ($0000 to $ffff), 32 kB RAM ($8000 to $ffff) and a 16c550 UART. ; ; B. Ulmann, 28-SEP-2011, 29-SEP-2011, 01-OCT-2011, 02-OCT-2011, 30-OCT-2011, ; 01-NOV-2011, 02-NOV-2011, 03-NOV-2011, 06/07/08-JAN-2012 ; I. Kloeckl, 06/07/08-JAN-2012 (FAT implementation for reading files) ; B. Ulmann, 14-JAN-2011, ; ; Version 0.8 ; ;************************************************************************** ; ; TODO: ; Read and print IDE error status codes in case of error! ; ; Known issues: ; Memory Dump has a problem when the end address is >= FF00 ; ;**************************************************************************** ; ; RST $00 will enter the monitor (do not care about the return address pushed ; onto the stack - the stack pointer will be reinitialized during cold as well ; as during warm starts. ; ; Monitor routines will generally called by placing the necessary parameters ; into some processor registers and then issuing RST $08. More about this later. ; ; Memory layout is as follows: ; ; +-------+ ; ! $FFFF ! General purpose 512 byte buffer ; ! --- ! ; ! $FE00 ! ; +-------+ ; ! $DFFF ! FAT control block ; ! --- ! ; ! $FDDC ! ; +-------+ ; ! $FDDB ! File control block ; ! --- ! ; ! $FBBE ! ; +-------+ ; ! $FBBD ! 81 byte string buffer ; ! --- ! ; ! $FB6D ! ; +-------+ ; ! $FB6C ! 12 byte string buffer ; ! --- ! ; ! $FB61 ! ; +-------+ ; ! $FB60 ! Buffers for various routines ; ! --- ! ; ! $FB4D ! ; +-------+ ; ! $FB4C ! Cold/warm start control (1 byte) ; +-------+ ; ! $FBBD ! Stack ; ! ... ! ; ! $8000 ! Begin of RAM ; +-------+ ; ! $7FFF ! ROM area ; ! --- ! RST $08 calls a system routine ; ! $0000 ! RST $00 restarts the monitor ; +-------+ ; ; monitor_start equ $0000 ; $0000 -> ROM, $8000 -> Test image ; org monitor_start ; rom_start equ $0 rom_end equ $7fff ram_start equ $8000 ram_end equ $ffff buffer equ ram_end - $1ff ; 512 byte IDE general purpose buffer ; ; Define the FAT control block memory addresses: ; datastart equ buffer - 4 ; Data area start vector rootstart equ datastart - 4 ; Root directory start vector fat1start equ rootstart - 4 ; Start vector to first FAT psiz equ fat1start - 4 ; Size of partition (in sectors) pstart equ psiz - 4 ; First sector of partition rootlen equ pstart - 2 ; Maximum number of entries in directory fatsec equ rootlen - 2 ; FAT size in sectors ressec equ fatsec - 2 ; Number of reserved sectors clusiz equ ressec - 1 ; Size of a cluster (in sectors) fatname equ clusiz - 9 ; Name of the FAT (null terminated) fatcb equ fatname ; Start of the FATCB ; ; Define a file control block (FCB) memory addresses and displacements: ; file_buffer equ fatcb - $200 ; 512 byte sector buffer cluster_sector equ file_buffer - 1 ; Current sector in cluster current_sector equ cluster_sector - 4 ; Current sector address current_cluster equ current_sector - 2 ; Current cluster number file_pointer equ current_cluster - 4 ; Pointer for file position file_type equ file_pointer - 1 ; 0 -> not found, else OK first_cluster equ file_type - 2 ; First cluster of file file_size equ first_cluster - 4 ; Size of file file_name equ file_size - 12 ; Canonical name of file fcb equ file_name ; Start of the FCB ; fcb_filename equ 0 fcb_file_size equ $c fcb_first_cluster equ $10 fcb_file_type equ $12 fcb_file_pointer equ $13 fcb_current_cluster equ $17 fcb_current_sector equ $19 fcb_cluster_sector equ $1d fcb_file_buffer equ $1e ; ; We also need some general purpose string buffers: ; string_81_bfr equ fcb - 81 string_12_bfr equ string_81_bfr - 12 ; ; A number of routines need a bit of scratch RAM, too. Since these are ; sometimes interdependent, each routine gets its own memory cells (only ; possible since the routines are not recursive). ; load_file_scrat equ string_12_bfr - 2 ; Two bytes for load_file str2filename_de equ load_file_scrat - 2 ; Two bytes for str2filename fopen_eob equ str2filename_de - 2 ; Eight bytes for fopen fopen_rsc equ fopen_eob - 4 fopen_scr equ fopen_rsc - 2 dirlist_scratch equ fopen_scr - 2 ; Eight bytes for fopen dirlist_eob equ dirlist_scratch - 2 dirlist_rootsec equ dirlist_eob - 4 ; start_type equ dirlist_rootsec - $1 ; Distinguish cold/warm start ; uart_base equ $0 ide_base equ $10 ; uart_register_0 equ uart_base + 0 uart_register_1 equ uart_base + 1 uart_register_2 equ uart_base + 2 uart_register_3 equ uart_base + 3 uart_register_4 equ uart_base + 4 uart_register_5 equ uart_base + 5 uart_register_6 equ uart_base + 6 uart_register_7 equ uart_base + 7 ; eos equ $00 ; End of string cr equ $0d ; Carriage return lf equ $0a ; Line feed space equ $20 ; Space tab equ $09 ; Tabulator ; ; Main entry point (RST 00H): ; rst_00 di ; Disable interrupts jr initialize ; Jump over the RST-area ; ; RST-area - here is the main entry point into the monitor. The calling ; standard looks like this: ; ; 1) Set register IX to the number of the system routine to be called. ; 2) Set the remaining registers according to the routine's documentation. ; 3) Execute RST $08 to actually call the system routine. ; 4) Evaluate the values returned in the registers as described by the ; Routine's documentation. ; ; (Currently there are no plans to use more RST entry points, so this routine ; just runs as long as necessary in memory. If more RSTs will be used, this ; routine should to be moved to the end of the used ROM area with only a ; simple jump at the RST $08-location.) ; ; This technique of calling system routines can be used as the following ; example program that just echos characters read from the serial line ; demonstrates: ; ; org $8000 ; Start in lower RAM ; loop ld ix, 5 ; Prepare call to getc ; rst 08 ; Execute getc ; cp 3 ; CTRL-C pressed? ; jr z, exit ; Yes - exit ; ld ix, 6 ; Prepare call to putc ; rst 08 ; Execute putx ; jr loop ; Process next character ; exit ld ix, 4 ; Exit - print a CR/LF pair ; rst 08 ; Call CRLF ; ld hl, msg ; Pointer to exit message ; ld ix, 7 ; Prepare calling puts ; rst 08 ; Call puts ; rst 00 ; Restart monitor (warm start) ; msg defb "That's all folks.", $d, $a, 0 ; ; Currently the following functions are available (a more detailed description ; can be found in the dispatch table itself): ; ; 0: cold_start ; 1: is_hex ; 2: is_print ; 3: to_upper ; 4: crlf ; 5: getc ; 6: putc ; 7: puts ; 8: strcmp ; 9: gets ; A: fgetc ; B: dump_fcb ; C: fopen ; D: dirlist ; E: fatmount ; F: fatunmount ; ; org monitor_start + $08 nop ; Beware: zasm is buggy concerning nop ; the org pseudo-statement. Therefore nop ; The displacement to the RST $08 nop ; entry point is generated by this nop ; NOP-sequence. rst_08 push bc ; Save bc and hl push hl push ix ; Copy the contents of ix pop hl ; into hl add hl, hl ; Double to get displacement in table ld bc, dispatch_table add hl, bc ; Calculate displacement in table ld bc, (hl) ; Load bc with the destination address push bc pop ix ; Load ix with the destination address pop hl ; Restore hl pop bc ; and bc jp (ix) ; Jump to the destination routine dispatch_table defw cold_start ; $00 = clear etc. ; Parameters: N/A ; Action: Performs a cold start (memory is cleared!) ; Return values: N/A ; defw is_hex ; Parameters: A contains a character code ; Action: Tests ('0' <= A <= '9) \|\| ('A' <= A <= 'F') ; Return values: Carry bit is set if A contains a hex char. ; defw is_print ; Parameters: A contains a charater code ; Action: Tests if the character is printable ; Return values: Carry bit is set if A contains a valid char. ; defw to_upper ; Parameters: A contains a character code ; Action: Converts an ASCII character into upper case ; Return values: Converted character code in A ; defw crlf ; Parameters: N/A ; Action: Sends a CR/LF to the serial line ; Return values: N/A ; defw getc ; Parameters: A contains a character code ; Action: Reads a character code from the serial line ; Return values: N/A ; defw putc ; Parameters: A contains a character code ; Action: Sends the character code to the serial line ; Return values: N/A ; defw puts ; Parameters: HL contains the address of a 0-terminated ; string ; Action: Send the string to the serial line (excluding ; the termination byte, of course) ; Return values: N/A ; defw strcmp ; Parameters: HL and DE contain the addresses of two strings ; Action: Compare both strings. ; Return values: A contains return value, <0 / 0 / >0 ; defw gets ; Parameters: HL contains a buffer address, B contains the ; buffer length (including the terminating ; null byte!) ; Action: Reads a string from STDIN. Terminates when ; either the buffer is full or the string is ; terminated by CR/LF. ; Return values: N/A ; defw fgetc ; Parameters: IY (pointer to a valid FCB) ; Action: Reads a character from a FAT file ; Return values: Character in A, if EOF has been encountered, ; the carry flag will be set ; defw dump_fcb ; Parameters: IY (pointer to a valid FCB) ; Action: Prints the contents of the FCB in human ; readable format to STDOUT ; Return values: N/A ; defw fopen ; Parameters: HL (points to a buffer containing the file ; file name), IY (points to an empty FCB) ; Action: Opens a file for reading ; Return values: N/A (All information is contained in the FCB) ; defw dirlist ; Parameters: N/A (relies on a valid FAT control block) ; Action: Writes a directory listing to STDOUT ; Return values: N/A ; defw fatmount ; Parameters: N/A (needs the global FAT control block) ; Action: Mounts a disk (populates the FAT CB) ; Return values: N/A ; defw fatunmount ; Parameters: N/A (needs the global FAT control block) ; Action: Invalidates the global FAT control block ; Return values; N/A ; ; The stackpointer will be predecremented by a push instruction. Since we need ; a 512 byte buffer for data transfers to and from the IDE disk, the stack ; pointer is initialized to start at the beginning of this buffer space. ; initialize ld sp, start_type - $1 ; ; Initialize UART to 9600,8N1: ; ld a, $80 out (uart_register_3), a ld a, $c ; 1843200 / (16 * 9600) out (uart_register_0), a xor a out (uart_register_1), a ld a, $3 ; 8N1 out (uart_register_3), a ; ; Print welcome message: ; ld hl, hello_msg call puts ; ; If this is a cold start (the location start_type does not contain $aa) ; all available RAM will be reset to $00 and a message will be printed. ; ld a, (start_type) cp $aa ; Warm start? jr z, main_loop ; Yes - enter command loop ld hl, cold_start_msg call puts ; Print cold start message ld hl, ram_start ; Start of block to be filled with $00 ld de, hl ; End address of block inc de ; plus 1 (for ldir) ld bc, ram_end - ram_start ld (hl), $00 ; Load first memory location ldir ; And copy this value down ld hl, start_type ld (hl), $aa ; Cold start done, remember this ; ; Read characters from the serial line and send them just back: ; main_loop ld hl, monitor_prompt call puts ; The monitor is rather simple: All commands are just one or two letters. ; The first character selects a command group, the second the desired command ; out of that group. When a command is recognized, it will be spelled out ; automatically and the user will be prompted for arguments if applicable. call monitor_key ; Read a key ; Which group did we get? cp 'C' ; Control group? jr nz, disk_group ; No - test next group ld hl, cg_msg ; Print group prompt call puts call monitor_key ; Get command key cp 'C' ; Cold start? jp z, cold_start cp 'W' ; Warm start? jp z, warm_start cp 'S' ; Start? jp z, start cp 'I' ; Info? call z, info jr z, main_loop jp cmd_error ; Unknown control-group-command disk_group cp 'D' ; Disk group? jr nz, file_group ; No - file group? ld hl, dg_msg ; Print group prompt call puts call monitor_key ; Get command cp 'I' ; Info? call z, disk_info jr z, main_loop cp 'M' ; Mount? call z, mount jr z, main_loop cp 'T' ; Read from disk? call z, disk_transfer jr z, main_loop cp 'U' ; Unmount? call z, unmount jr z, main_loop jr cmd_error ; Unknown disk-group-command file_group cp 'F' ; File group? jr nz, help_group ; No - help group? ld hl, fg_msg ; Print group prompt call puts call monitor_key ; Get command cp 'C' ; Cat? call z, cat_file jr z, main_loop cp 'D' ; Directory? call z, directory jr z, main_loop cp 'L' ; Load? call z, load_file jr z, main_loop jr cmd_error ; Unknown file-group-command help_group cp 'H' ; Help? (No further level expected.) call z, help ; Yes :-) jp z, main_loop memory_group cp 'M' ; Memory group? jp nz, group_error ; No - print an error message ld hl, mg_msg ; Print group prompt call puts call monitor_key ; Get command key cp 'D' ; Dump? call z, dump jp z, main_loop cp 'E' ; Examine? call z, examine jp z, main_loop cp 'F' ; Fill? call z, fill jp z, main_loop cp 'I' ; INTEL-Hex load? call z, ih_load jp z, main_loop cp 'L' ; Load? call z, load jp z, main_loop cp 'M' ; Move? call z, move jp z, main_loop cp 'R' ; Register dump? call z, rdump jp z, main_loop jr cmd_error ; Unknown memory-group-command group_error ld hl, group_err_msg jr print_error cmd_error ld hl, command_err_msg print_error call putc ; Echo the illegal character call puts ; and print the error message jp main_loop ; ; Some constants for the monitor: ; hello_msg defb cr, lf, cr, lf, "Simple Z80-monitor - V 0.8 " defb "(B. Ulmann, Sep. 2011 - Jan. 2012)", cr, lf, eos monitor_prompt defb cr, lf, "Z> ", eos cg_msg defb "CONTROL/", eos dg_msg defb "DISK/", eos fg_msg defb "FILE/", eos mg_msg defb "MEMORY/", eos command_err_msg defb ": Syntax error - command not found!", cr, lf, eos group_err_msg defb ": Syntax error - group not found!", cr, lf, eos cold_start_msg defb "Cold start, clearing memory.", cr, lf, eos ; ; Read a key for command group and command: ; monitor_key call getc cp lf ; Ignore LF jr z, monitor_key ; Just get the next character call to_upper cp cr ; A CR will return to the prompt ret nz ; No - just return inc sp ; Correct SP to and avoid ret! jp main_loop ; ;**************************************************************************** ;* ;* The following routines are used in the interactive part of the monitor ;* ;****************************************************************************** ; ; Print a file's contents to STDOUT: ; cat_file push bc push de push hl push iy ld hl, cat_file_prompt call puts ld hl, string_81_bfr ld b, 81 call gets ; Read the filename into buffer ld iy, fcb ; Prepare fopen (only one FCB currently) ld de, string_12_bfr call fopen cat_file_loop call fgetc ; Get a single character jr c, cat_file_exit call putc ; Print character if not EOF jr cat_file_loop ; Next character cat_file_exit pop iy pop hl pop de pop bc ret cat_file_prompt defb "CAT: FILENAME=", eos ; ; directory - a simple wrapper for dirlist (necessary for printing the command ; name) ; directory push hl ld hl, directory_msg call puts call dirlist pop hl ret directory_msg defb "DIRECTORY", cr, lf, eos ; ; Get and print disk info: ; disk_info push af push hl ld hl, disk_info_msg call puts call ide_get_id ; Read the disk info into the IDE buffer ld hl, buffer + $13 ld (hl), tab call puts ; Print vendor information call crlf ld hl, buffer + $2d ld (hl), tab call puts call crlf pop hl pop af ret disk_info_msg defb "INFO:", cr, lf, eos ; ; Read data from disk to memory ; disk_transfer push af push bc push de push hl push ix ld hl, disk_trx_msg_0 call puts ; Print Read/Write prompt disk_trx_rwlp call getc call to_upper cp 'R' ; Read? jr nz, disk_trx_nr ; No ld ix, ide_rs ; Yes, we will call ide_rs later ld hl, disk_trx_msg_1r jr disk_trx_main ; Prompt the user for parameters disk_trx_nr cp 'W' ; Write? jr nz, disk_trx_rwlp ld ix, ide_ws ; Yes, we will call ide_ws later ld hl, disk_trx_msg_1w disk_trx_main call puts ; Print start address prompt call get_word ; Get memory start address push hl ld hl, disk_trx_msg_2 call puts ; Prompt for number of blocks call get_byte ; There are only 128 block of memory! cp 0 ; Did the user ask for 00 blocks? jr nz, disk_trx_1 ; No, continue prompting ld hl, disk_trx_msg_4 call puts jr disk_trx_exit disk_trx_1 ld hl, disk_trx_msg_3 call puts ; Prompt for disk start sector call get_word ; This is a four byte address! ld bc, hl call get_word ld de, hl pop hl ; Restore memory start address ; Register contents: ; A: Number of blocks ; BC: LBA3/2 ; DE: LBA1/0 ; HL: Memory start address disk_trx_loop push af ; Save number of sectors call disk_trampoline ; Read/write one sector (F is changed!) push hl ; Save memory address push bc ; Save LBA3/2 ld hl, de ; Increment DE (LBA1/0) ld bc, $0001 ; by one and add hl, bc ; generate a carry if necessary ld de, hl ; Save new LBA1/0 pop hl ; Restore LBA3/2 into HL (!) jr nc, disk_trx_skip add hl, bc ; Increment BC if there was a carry disk_trx_skip ld bc, hl ; Write new LBA3/2 into BC pop hl ; Restore memory address push bc ; Save LBA3/2 ld bc, $200 ; 512 byte per block add hl, bc ; Set pointer to next memory block pop bc ; Restore LBA3/2 pop af dec a ; One block already done jr nz, disk_trx_loop disk_trx_exit pop ix pop hl pop de pop bc pop af ret disk_trampoline jp (ix) disk_trx_msg_0 defb "TRANSFER/", eos disk_trx_msg_1r defb "READ: ", cr, lf, " MEMORY START=", eos disk_trx_msg_1w defb "WRITE: ", cr, lf, " MEMORY START=", eos disk_trx_msg_2 defb " NUMBER OF BLOCKS (512 BYTE)=", eos disk_trx_msg_3 defb " START SECTOR=", eos disk_trx_msg_4 defb " Nothing to do for zero blocks.", cr, lf, eos ; ; Dump a memory area ; dump push af push bc push de push hl ld hl, dump_msg_1 call puts ; Print prompt call get_word ; Read start address push hl ; Save start address ld hl, dump_msg_2 ; Prompt for end address call puts call get_word ; Get end address call crlf inc hl ; Increment stop address for comparison ld de, hl ; DE now contains the stop address pop hl ; HL is the start address again ; This loop will dump 16 memory locations at once - even ; if this turns out to be more than requested. dump_line ld b, $10 ; This loop will process 16 bytes push hl ; Save HL again call print_word ; Print address ld hl, dump_msg_3 ; and a colon call puts pop hl ; Restore address push hl ; We will need HL for the ASCII dump dump_loop ld a, (hl) ; Get the memory content call print_byte ; and print it ld a, ' ' ; Print a space call putc inc hl ; Increment address counter djnz dump_loop ; Continue with this line ; This loop will dump the very same 16 memory locations - but ; this time printable ASCII characters will be written. ld b, $10 ; 16 characters at a time ld a, ' ' ; We need some spaces call putc ; to print call putc pop hl ; Restore the start address dump_ascii_loop ld a, (hl) ; Get byte call is_print ; Is it printable? jr c, dump_al_1 ; Yes ld a, '.' ; No - print a dot dump_al_1 call putc ; Print the character inc hl ; Increment address to read from djnz dump_ascii_loop ; Now we are finished with printing one line of dump output. call crlf ; CR/LF for next line on terminal push hl ; Save the current address for later and a ; Clear carry sbc hl, de ; Have we reached the last address? pop hl ; restore the address jr c, dump_line ; Dump next line of 16 bytes pop hl pop de pop bc pop af ret dump_msg_1 defb "DUMP: START=", eos dump_msg_2 defb " END=", eos dump_msg_3 defb ": ", eos ; ; Examine a memory location: ; examine push af push hl ld hl, examine_msg_1 call puts call get_word ; Wait for a four-nibble address push hl ; Save address for later ld hl, examine_msg_2 call puts examine_loop pop hl ; Restore address ld a, (hl) ; Get content of address inc hl ; Prepare for next examination push hl ; Save hl again for later use call print_byte ; Print the byte call getc ; Get a character cp ' ' ; A blank? jr nz, examine_exit; No - exit ld a, ' ' ; Print a blank character call putc jr examine_loop examine_exit pop hl ; Get rid of save hl value call crlf ; Print CR/LF pop hl pop af ret examine_msg_1 defb "EXAMINE (type ' '/RET): ADDR=", eos examine_msg_2 defb " DATA=", eos ; ; Fill a block of memory with a single byte - the user is prompted for the ; start address, the length of the block and the fill value. ; fill push af ; We will need nearly all registers push bc push de push hl ld hl, fill_msg_1 ; Prompt for start address call puts call get_word ; Get the start address push hl ; Store the start address and a ; Clear carry ld bc, ram_start sbc hl, bc ; Is the address in the RAM area? jr nc, fill_get_length ld hl, fill_msg_4 ; No! call puts ; Print error message pop hl ; Clean up the stack jr fill_exit ; Leave routine fill_get_length ld hl, fill_msg_2 ; Prompt for length information call puts call get_word ; Get the length of the block ; Now make sure that start + length is still in RAM: ld bc, hl ; BC contains the length pop hl ; HL now contains the start address push hl ; Save the start address again push bc ; Save the length add hl, bc ; Start + length and a ; Clear carry ld bc, ram_start sbc hl, bc ; Compare with ram_start jr nc, fill_get_value ld hl, fill_msg_5 ; Print error message call puts pop bc ; Clean up the stack pop hl jr fill_exit ; Leave the routine fill_get_value ld hl, fill_msg_3 ; Prompt for fill value call puts call get_byte ; Get the fill value pop bc ; Get the length from the stack pop hl ; Get the start address again ld de, hl ; DE = HL + 1 inc de dec bc ; HL = start address ; DE = destination address = HL + 1 ; Please note that this is necessary - LDIR does not ; work with DE == HL. :-) ; A = fill value ld (hl), a ; Store A into first memory location ldir ; Fill the memory call crlf fill_exit pop hl ; Restore the register contents pop de pop bc pop af ret fill_msg_1 defb "FILL: START=", eos fill_msg_2 defb " LENGTH=", eos fill_msg_3 defb " VALUE=", eos fill_msg_4 defb " Illegal address!", cr, lf, eos fill_msg_5 defb " Block exceeds RAM area!", cr, lf, eos ; ; Help ; help push hl ld hl, help_msg call puts pop hl ret help_msg defb "HELP: Known command groups and commands:", cr, lf defb " C(ontrol group):", cr, lf defb " C(old start), I(nfo), S(tart), " defb "W(arm start)", cr, lf defb " D(isk group):", cr, lf defb " I(nfo), M(ount), T(ransfer)," defb " U(nmount)", cr, lf defb " R(ead), W(rite)" defb cr, lf defb " F(ile group):", cr, lf defb " C(at), D(irectory), L(oad)", cr, lf defb " H(elp)", cr, lf defb " M(emory group):", cr, lf defb " D(ump), E(xamine), F(ill), " defb "I(ntel Hex Load), L(oad), R(egister dump)" defb cr, lf, eos ; ; Load an INTEL-Hex file (a ROM image) into memory. This routine has been ; more or less stolen from a boot program written by Andrew Lynch and adapted ; to this simple Z80 based machine. ; ; The INTEL-Hex format looks a bit awkward - a single line contains these ; parts: ; ':', Record length (2 hex characters), load address field (4 hex characters), ; record type field (2 characters), data field (2 * n hex characters), ; checksum field. Valid record types are 0 (data) and 1 (end of file). ; ; Please note that this routine will not echo what it read from stdin but ; what it "understood". :-) ; ih_load push af push de push hl ld hl, ih_load_msg_1 call puts ih_load_loop call getc ; Get a single character cp cr ; Don't care about CR jr z, ih_load_loop cp lf ; ...or LF jr z, ih_load_loop cp space ; ...or a space jr z, ih_load_loop call to_upper ; Convert to upper case call putc ; Echo character cp ':' ; Is it a colon? jr nz, ih_load_error call get_byte ; Get record length into A ld d, a ; Length is now in D ld e, $0 ; Clear checksum call ih_load_chk ; Compute checksum call get_word ; Get load address into HL ld a, h ; Update checksum by this address call ih_load_chk ld a, l call ih_load_chk call get_byte ; Get the record type call ih_load_chk ; Update checksum cp $1 ; Have we reached the EOF marker? jr nz, ih_load_data; No - get some data call get_byte ; Yes - EOF, read checksum data call ih_load_chk ; Update our own checksum ld a, e and a ; Is our checksum zero (as expected)? jr z, ih_load_exit ; Yes - exit this routine ih_load_chk_err ld hl, ih_load_msg_3 call puts ; No - print an error message jr ih_load_exit ; and exit ih_load_data ld a, d ; Record length is now in A and a ; Did we process all bytes? jr z, ih_load_eol ; Yes - process end of line call get_byte ; Read two hex digits into A call ih_load_chk ; Update checksum ld (hl), a ; Store byte into memory inc hl ; Increment pointer dec d ; Decrement remaining record length jr ih_load_data ; Get next byte ih_load_eol call get_byte ; Read the last byte in the line call ih_load_chk ; Update checksum ld a, e and a ; Is the checksum zero (as expected)? jr nz, ih_load_chk_err call crlf jr ih_load_loop ; Yes - read next line ih_load_error ld hl, ih_load_msg_2 call puts ; Print error message ih_load_exit call crlf pop hl ; Restore registers pop de pop af ret ; ih_load_chk ld c, a ; All in all compute E = E - A ld a, e sub c ld e, a ld a, c ret ih_load_msg_1 defb "INTEL HEX LOAD: ", eos ih_load_msg_2 defb " Syntax error!", eos ih_load_msg_3 defb " Checksum error!", eos ; ; Print version information etc. ; info push hl ld hl, info_msg call puts ld hl, hello_msg call puts pop hl ret info_msg defb "INFO: ", eos ; ; Load data into memory. The user is prompted for a 16 bit start address. Then ; a sequence of bytes in hexadecimal notation may be entered until a character ; that is not 0-9 or a-f is encountered. ; load push af push bc push de push hl ld hl, load_msg_1 ; Print command name call puts call get_word ; Wait for the start address (2 bytes) push hl ; Remember address and a ; Clear carry ld bc, ram_start ; Check if the address is valid sbc hl, bc ; by subtracting the RAM start address pop hl ; Restore address ld de, 0 ; Counter for bytes loaded jr nc, load_loop ; OK - start reading hex characters ld hl, load_msg_3 ; Print error message call puts jr load_exit ; All in all we need two hex nibbles per byte. If two characters ; in a row are valid hexadecimal digits we will convert them ; to a byte and store this in memory. If one character is ; illegal, the load routine terminates and returns to the ; monitor. load_loop ld a, ' ' call putc ; Write a space as byte delimiter call getc ; Read first character call to_upper ; Convert to upper case call is_hex ; Is it a hex digit? jr nc, load_exit ; No - exit the load routine call nibble2val ; Convert character to value call print_nibble ; Echo hex digit rlc a rlc a rlc a rlc a ld b, a ; Save the upper four bits for later call getc ; Read second character and proceed... call to_upper ; Convert to upper case call is_hex jr nc, load_exit call nibble2val call print_nibble or b ; Combine lower 4 bits with upper ld (hl), a ; Save value to memory inc hl inc de jr load_loop ; Get next byte (or at least try to) load_exit call crlf ; Finished... ld hl, de ; Print number of bytes loaded call print_word ld hl, load_msg_2 call puts pop hl pop de pop bc pop af ret load_msg_1 defb "LOAD (xx or else to end): ADDR=", eos load_msg_2 defb " bytes loaded.", cr, lf, eos load_msg_3 defb " Illegal address!", eos ; ; Load a file's contents into memory: ; load_file push af push bc push de push hl push iy ld hl, load_file_msg_1 call puts ; Print first prompt (start address) call get_word ; Wait for the start address (2 bytes) ld (load_file_scrat), hl and a ; Clear carry ld bc, ram_start ; Check if the address is valid sbc hl, bc ; by subtracting the RAM start address jr nc, load_file_1 ld hl, load_file_msg_2 call puts jr load_file_exit ; Illegal address - exit routine load_file_1 ld hl, load_file_msg_4 call puts ; Prompt for filename ld hl, string_81_bfr ld b, 81 ; Buffer length call gets ; Read file name into bfr ld iy, fcb ; Prepare open (only one FCB currently) ld de, string_12_bfr call fopen ; Open the file (if possible) ld hl, (load_file_scrat) ld de, 0 ; Counter for bytes loaded load_file_loop call fgetc ; Get one byte from the file jr c, load_file_exit ld (hl), a ; Store byte and inc hl ; increment pointer inc de jr load_file_loop ; Process next byte load_file_exit call crlf ld hl, de ; Print number of bytes loaded call print_word ld hl, load_file_msg_3 call puts pop iy pop hl pop de pop bc pop af ret load_file_msg_1 defb "LOAD FILE: ADDR=", eos load_file_msg_2 defb " Illegal address!", eos load_file_msg_3 defb " bytes loaded.", cr, lf, eos load_file_msg_4 defb " FILENAME=", eos ; ; mount - a wrapper for fatmount (necessary for printing the command's name) ; mount push hl ld hl, mount_msg call puts call fatmount pop hl ret mount_msg defb "MOUNT", cr, lf, cr, lf, eos ; ; Move a memory block - the user is prompted for all necessary data: ; move push af ; We won't even destroy the flags! push bc push de push hl ld hl, move_msg_1 call puts call get_word ; Get address of block to be moved push hl ; Push this address ld hl, move_msg_2 call puts call get_word ; Get destination start address ld de, hl ; LDIR requires this in DE ; Is the destination address in RAM area? and a ; Clear carry ld bc, ram_start sbc hl, bc ; Is the destination in RAM? jr nc, move_get_length ld hl, move_msg_4 ; No - print error message call puts pop hl ; Clean up stack jr move_exit move_get_length ld hl, move_msg_3 call puts call get_word ; Get length of block ld bc, hl ; LDIR requires the length in BC pop hl ; Get address of block to be moved ; I was lazy - there is no test to make sure that the block ; to be moved will fit into the RAM area. ldir ; Move block move_exit call crlf ; Finished pop hl ; Restore registers pop de pop bc pop af ret move_msg_1 defb "MOVE: FROM=", eos move_msg_2 defb " TO=", eos move_msg_3 defb " LENGTH=", eos move_msg_4 defb " Illegal destination address!", eos ; ; Dump the contents of both register banks: ; rdump push af push hl ld hl, rdump_msg_1 ; Print first two lines call puts pop hl call rdump_one_set exx ex af, af' push hl ld hl, rdump_msg_2 call puts pop hl call rdump_one_set ex af, af' exx push hl ld hl, rdump_msg_3 call puts push ix pop hl call print_word ld hl, rdump_msg_4 call puts push iy pop hl call print_word ld hl, rdump_msg_5 call puts ld hl, 0 add hl, sp call print_word call crlf pop hl pop af ret rdump_msg_1 defb "REGISTER DUMP", cr, lf, cr, lf, tab, "1st:", eos rdump_msg_2 defb tab, "2nd:", eos rdump_msg_3 defb tab, "PTR: IX=", eos rdump_msg_4 defb " IY=", eos rdump_msg_5 defb " SP=", eos ; rdump_one_set push hl ; Print one register set ld hl, rdump_os_msg_1 call puts push af ; Move AF into HL pop hl call print_word ; Print contents of AF ld hl, rdump_os_msg_2 call puts ld hl, bc call print_word ; Print contents of BC ld hl, rdump_os_msg_3 call puts ld hl, de call print_word ; Print contents of DE ld hl, rdump_os_msg_4 call puts pop hl ; Restore original HL call print_word ; Print contents of HL call crlf ret rdump_os_msg_1 defb " AF=", eos rdump_os_msg_2 defb " BC=", eos rdump_os_msg_3 defb " DE=", eos rdump_os_msg_4 defb " HL=", eos ; ; Start a program - this will prompt for a four digital hexadecimal start ; address. A program should end with "jp $0" to enter the monitor again. ; start ld hl, start_msg call puts call get_word ; Wait for a four-nibble address call crlf jp (hl) ; Start program (and hope for the best) start_msg defb "START: ADDR=", eos ; ; unmount - simple wrapper for fatunmount (necessary for printing the command ; name) ; unmount push hl ld hl, unmount_msg call puts call fatunmount pop hl ret unmount_msg defb "UNMOUNT", cr, lf, eos ; ;**************************************************************************** ;* ;* String routines ;* ;****************************************************************************** ; ; is_hex checks a character stored in A for being a valid hexadecimal digit. ; A valid hexadecimal digit is denoted by a set C flag. ; is_hex cp 'F' + 1 ; Greater than 'F'? ret nc ; Yes cp '0' ; Less than '0'? jr nc, is_hex_1 ; No, continue ccf ; Complement carry (i.e. clear it) ret is_hex_1 cp '9' + 1 ; Less or equal '9? ret c ; Yes cp 'A' ; Less than 'A'? jr nc, is_hex_2 ; No, continue ccf ; Yes - clear carry and return ret is_hex_2 scf ; Set carry ret ; ; is_print checks if a character is a printable ASCII character. A valid ; character is denoted by a set C flag. ; is_print cp space jr nc, is_print_1 ccf ret is_print_1 cp $7f ret ; ; nibble2val expects a hexadecimal digit (upper case!) in A and returns the ; corresponding value in A. ; nibble2val cp '9' + 1 ; Is it a digit (less or equal '9')? jr c, nibble2val_1 ; Yes sub 7 ; Adjust for A-F nibble2val_1 sub '0' ; Fold back to 0..15 and $f ; Only return lower 4 bits ret ; ; Convert a single character contained in A to upper case: ; to_upper cp 'a' ; Nothing to do if not lower case ret c cp 'z' + 1 ; > 'z'? ret nc ; Nothing to do, either and $5f ; Convert to upper case ret ; ; Compare two null terminated strings, return >0 / 0 / <0 in A, works like ; strcmp. The routine expects two pointer in HL and DE which will be ; preserved. ; strcmp push de push hl strcmp_loop ld a, (de) cp 0 ; End of first string reached? jr z, strcmp_exit cp (hl) ; Compare two characters jr nz, strcmp_exit ; Different -> exit inc hl inc de jr strcmp_loop strcmp_exit sub (hl) pop hl pop de ret ; ;*************************************************************************** ;* ;* IO routines ;* ;**************************************************************************** ; ; Send a CR/LF pair: ; crlf push af ld a, cr call putc ld a, lf call putc pop af ret ; ; Read a single character from the serial line, result is in A: ; getc call rx_ready in a, (uart_register_0) ret ; ; Get a byte in hexadecimal notation. The result is returned in A. Since ; the routine get_nibble is used only valid characters are accepted - the ; input routine only accepts characters 0-9a-f. ; get_byte push bc ; Save contents of B (and C) call get_nibble ; Get upper nibble rlc a rlc a rlc a rlc a ld b, a ; Save upper four bits call get_nibble ; Get lower nibble or b ; Combine both nibbles pop bc ; Restore B (and C) ret ; ; Get a hexadecimal digit from the serial line. This routine blocks until ; a valid character (0-9a-f) has been entered. A valid digit will be echoed ; to the serial line interface. The lower 4 bits of A contain the value of ; that particular digit. ; get_nibble call getc ; Read a character call to_upper ; Convert to upper case call is_hex ; Was it a hex digit? jr nc, get_nibble ; No, get another character call nibble2val ; Convert nibble to value call print_nibble ret ; ; Get a word (16 bit) in hexadecimal notation. The result is returned in HL. ; Since the routines get_byte and therefore get_nibble are called, only valid ; characters (0-9a-f) are accepted. ; get_word push af call get_byte ; Get the upper byte ld h, a call get_byte ; Get the lower byte ld l, a pop af ret ; ; Read a string from STDIN - HL contains the buffer start address, ; B contains the buffer length. ; gets push af push bc push hl gets_loop call getc ; Get a single character cp cr ; Skip CR characters jr z, gets_loop ; only LF will terminate input call to_upper call putc ; Echo character cp lf ; Terminate string at jr z, gets_exit ; LF or ld (hl), a ; Copy character to buffer inc hl djnz gets_loop gets_exit ld (hl), 0 ; Insert termination byte pop hl pop bc pop af ret ; ; print_byte prints a single byte in hexadecimal notation to the serial line. ; The byte to be printed is expected to be in A. ; print_byte push af ; Save the contents of the registers push bc ld b, a rrca rrca rrca rrca call print_nibble ; Print high nibble ld a, b call print_nibble ; Print low nibble pop bc ; Restore original register contents pop af ret ; ; print_nibble prints a single hex nibble which is contained in the lower ; four bits of A: ; print_nibble push af ; We won't destroy the contents of A and $f ; Just in case... add '0' ; If we have a digit we are done here. cp '9' + 1 ; Is the result > 9? jr c, print_nibble_1 add 'A' - '0' - $a ; Take care of A-F print_nibble_1 call putc ; Print the nibble and pop af ; restore the original value of A ret ; ; print_word prints the four hex digits of a word to the serial line. The ; word is expected to be in HL. ; print_word push hl push af ld a, h call print_byte ld a, l call print_byte pop af pop hl ret ; ; Send a single character to the serial line (a contains the character): ; putc call tx_ready out (uart_register_0), a ret ; ; Send a string to the serial line, HL contains the pointer to the string: ; puts push af push hl puts_loop ld a, (hl) cp eos ; End of string reached? jr z, puts_end ; Yes call putc inc hl ; Increment character pointer jr puts_loop ; Transmit next character puts_end pop hl pop af ret ; ; Wait for an incoming character on the serial line: ; rx_ready push af rx_ready_loop in a, (uart_register_5) bit 0, a jr z, rx_ready_loop pop af ret ; ; Wait for UART to become ready to transmit a byte: ; tx_ready push af tx_ready_loop in a, (uart_register_5) bit 5, a jr z, tx_ready_loop pop af ret ; ;************************************************************************** ;* ;* IDE routines ;* ;**************************************************************************** ; ide_data_low equ ide_base + $0 ide_data_high equ ide_base + $8 ide_error_code equ ide_base + $1 ; ; Bit mapping of ide_error_code register: ; ; 0: 1 = DAM not found ; 1: 1 = Track 0 not found ; 2: 1 = Command aborted ; 3: Reserved ; 4: 1 = ID not found ; 5: Reserved ; 6: 1 = Uncorrectable ECC error ; 7: 1 = Bad block detected ; ide_secnum equ ide_base + $2 ; ; Typically set to 1 sector to be transf. ; ide_lba0 equ ide_base + $3 ide_lba1 equ ide_base + $4 ide_lba2 equ ide_base + $5 ide_lba3 equ ide_base + $6 ; ; Bit mapping of ide_lba3 register: ; ; 0 - 3: LBA bits 24 - 27 ; 4 : Master (0) or slave (1) selection ; 5 : Always 1 ; 6 : Set to 1 for LBA access ; 7 : Always 1 ; ide_status_cmd equ ide_base + $7 ; ; Useful commands (when written): ; ; $20: Read sectors with retry ; $30: Write sectors with retry ; $EC: Identify drive ; ; Status bits (when read): ; ; 0 = ERR: 1 = Previous command resulted in an error ; 1 = IDX: Unused ; 2 = CORR: Unused ; 3 = DRQ: 1 = Data Request Ready (sector buffer ready) ; 4 = DSC: Unused ; 5 = DF: 1 = Write fault ; 6 = RDY: 1 = Ready to accept command ; 7 = BUSY: 1 = Controller is busy executing a command ; ide_retries equ $ff ; Number of retries for polls ; ; ; Get ID information from drive. HL is expected to point to a 512 byte byte ; sector buffer. If carry is set, the function did not complete correctly and ; was aborted. ; ide_get_id push af push bc push hl call ide_ready ; Is the drive ready? jr c, ide_get_id_err ; No - timeout! ld a, $a0 ; Master, no LBA addressing out (ide_status_cmd), a call ide_ready ; Did the command complete? jr c, ide_get_id_err ; Timeout! ld a, $ec ; Command to read ID out (ide_status_cmd), a ; Write command to drive call ide_ready ; Can we proceed? jr c, ide_get_id_err ; No - timeout, propagate carry call ide_error_check ; Any errors? jr c, ide_get_id_err ; Yes - something went wrong call ide_bfr_ready ; Is the buffer ready to read? jr c, ide_get_id_err ; No ld hl, buffer ; Load the buffer's address ld b, $0 ; We will read 256 words ide_get_id_lp in a, (ide_data_low) ; Read high (!) byte ld c, a in a, (ide_data_high) ; Read low (!) byte ld (hl), a inc hl ld (hl), c inc hl djnz ide_get_id_lp ; Read next word jr ide_get_id_exit ; Everything OK, just exit ide_get_id_err ld hl, ide_get_id_msg ; Print error message call puts ide_get_id_exit pop hl pop bc pop af ret ide_get_id_msg defb "FATAL(IDE): Aborted!", cr, lf ; ; Test if the buffer of the IDE disk drive is ready for transfer. If not, ; carry will be set, otherwise carry is reset. The contents of register A will ; be destroyed! ; ide_bfr_ready push bc and a ; Clear carry assuming no error ld b, ide_retries ; How many retries? ide_bfr_loop in a, (ide_status_cmd) ; Read IDE status register bit 3, a ; Check DRQ bit jr nz, ide_bfr_exit ; Buffer is ready push bc ld b, $0 ; Wait a moment ide_bfr_wait nop djnz ide_bfr_wait pop bc djnz ide_bfr_loop ; Retry scf ; Set carry to indicate timeout ld hl, ide_bfr_rdy_err call puts ide_bfr_exit pop bc ret ide_bfr_rdy_err defb "FATAL(IDE): ide_bfr_ready timeout!", cr, lf, eos ; ; Test if there is any error flagged by the drive. If carry is cleared, no ; error occured, otherwise carry will be set. The contents of register A will ; be destroyed. ; ide_error_check and a ; Clear carry (no err expected) in a, (ide_status_cmd) ; Read status register bit 0, a ; Test error bit jr z, ide_ec_exit ; Everything is OK scf ; Set carry due to error ide_ec_exit ret ; ; Read a sector from the drive. If carry is set after return, the function did ; not complete correctly due to a timeout. HL is expected to contain the start ; address of the sector buffer while BC and DE contain the sector address ; (LBA3, 2, 1 and 0). Register A's contents will be destroyed! ; ide_rs push bc push hl call ide_ready ; Is the drive ready? jr c, ide_rs_err ; No - timeout! call ide_set_lba ; Setup the drive's registers call ide_ready ; Everything OK? jr c, ide_rs_err ; No - timeout! ld a, $20 out (ide_status_cmd), a ; Issue read command call ide_ready ; Can we proceed? jr c, ide_rs_err ; No - timeout, set carry call ide_error_check ; Any errors? jr c, ide_rs_err ; Yes - something went wrong call ide_bfr_ready ; Is the buffer ready to read? jr c, ide_rs_err ; No ld b, $0 ; We will read 256 words ide_rs_loop in a, (ide_data_low) ; Read low byte ld (hl), a ; Store this byte inc hl in a, (ide_data_high) ; Read high byte ld (hl), a inc hl djnz ide_rs_loop ; Read next word until done jr ide_rs_exit ide_rs_err ld hl, ide_rs_err_msg ; Print error message call puts ide_rs_exit pop hl pop bc ret ide_rs_err_msg defb "FATAL(IDE): ide_rs timeout!", cr, lf, eos ; ; Write a sector from the drive. If carry is set after return, the function did ; not complete correctly due to a timeout. HL is expected to contain the start ; address of the sector buffer while BC and DE contain the sector address ; (LBA3, 2, 1 and 0). Register A's contents will be destroyed! ; ide_ws push bc push hl call ide_ready ; Is the drive ready? jr c, ide_ws_err ; No - timeout! call ide_set_lba ; Setup the drive's registers call ide_ready ; Everything OK? jr c, ide_ws_err ; No - timeout! ld a, $30 out (ide_status_cmd), a ; Issue read command call ide_ready ; Can we proceed? jr c, ide_ws_err ; No - timeout, set carry call ide_error_check ; Any errors? jr c, ide_ws_err ; Yes - something went wrong call ide_bfr_ready ; Is the buffer ready to read? jr c, ide_ws_err ; No ld b, $0 ; We will write 256 word ide_ws_loop ld a, (hl) ; Get first byte from memory ld c, a inc hl ld a, (hl) ; Get next byte out (ide_data_high), a ; Write high byte to controller ld a, c ; Recall low byte again out (ide_data_low), a ; Write low byte -> strobe djnz ide_ws_loop jr ide_ws_exit ide_ws_err ld hl, ide_ws_err_msg ; Print error message call puts ide_ws_exit pop hl pop bc ret ide_ws_err_msg defb "FATAL(IDE): ide_ws timeout!", cr, lf, eos ; ; Set sector count and LBA registers of the drive. Registers BC and DE contain ; the sector address (LBA 3, 2, 1 and 0). ; ide_set_lba push af ld a, $1 ; We will transfer out (ide_secnum), a ; one sector at a time ld a, e out (ide_lba0), a ; Set LBA0, 1 and 2 directly ld a, d out (ide_lba1), a ld a, c out (ide_lba2), a ld a, b ; Special treatment for LBA3 and $0f ; Only bits 0 - 3 are LBA3 or $e0 ; Select LBA and master drive out (ide_lba3), a pop af ret ; ; Test if the IDE drive is not busy and ready to accept a command. If it is ; ready the carry flag will be reset and the function returns. If a time out ; occurs, C will be set prior to returning to the caller. Register A will ; be destroyed! ; ide_ready push bc and a ; Clear carry assuming no error ld b, ide_retries ; Number of retries to timeout ide_ready_loop in a, (ide_status_cmd) ; Read drive status and a, $c0 ; Only bits 7 and 6 are needed xor $40 ; Invert the ready flag jr z, ide_ready_exit ; Exit if ready and not busy push bc ld b, $0 ; Wait a moment ide_ready_wait nop djnz ide_ready_wait pop bc djnz ide_ready_loop ; Retry scf ; Set carry due to timeout ld hl, ide_rdy_error call puts in a, (ide_error_code) call print_byte ide_ready_exit pop bc ret ide_rdy_error defb "FATAL(IDE): ide_ready timeout!", cr, lf, eos ; ;************************************************************************** ;* ;* Miscellaneous functions ;* ;**************************************************************************** ; ; Clear the computer (not to be called - jump into this routine): ; cold_start ld hl, start_type ld (hl), $00 warm_start ld hl, clear_msg call puts ld a, $00 ld (ram_end), a rst $00 clear_msg defb "CLEAR", cr, lf, eos ; ;************************************************************************** ;* ;* Mathematical routines ;* ;****************************************************************************** ; ; 32 bit add routine from ; http://www.andreadrian.de/oldcpu/Z80_number_cruncher.html ; ; ADD ROUTINE 32+32BIT=32BIT ; H'L'HL = H'L'HL + D'E'DE ; CHANGES FLAGS ; ADD32: ADD HL,DE ; 16-BIT ADD OF HL AND DE EXX ADC HL,DE ; 16-BIT ADD OF HL AND DE WITH CARRY EXX RET ; ; 32 bit multiplication routine from ; http://www.andreadrian.de/oldcpu/Z80_number_cruncher.html ; ; MULTIPLY ROUTINE 3232BIT=32BIT ; H'L'HL = B'C'BC D'E'DE; NEEDS REGISTER A, CHANGES FLAGS ; MUL32: AND A ; RESET CARRY FLAG SBC HL,HL ; LOWER RESULT = 0 EXX SBC HL,HL ; HIGHER RESULT = 0 LD A,B ; MPR IS AC'BC LD B,32 ; INITIALIZE LOOP COUNTER MUL32LOOP: SRA A ; RIGHT SHIFT MPR RR C EXX RR B RR C ; LOWEST BIT INTO CARRY JR NC,MUL32NOADD ADD HL,DE ; RESULT += MPD EXX ADC HL,DE EXX MUL32NOADD: SLA E ; LEFT SHIFT MPD RL D EXX RL E RL D DJNZ MUL32LOOP EXX RET ; ;**************************************************************************** ;* ;* FAT file system routines ;* ;****************************************************************************** ; ; Read a single byte from a file. IY points to the FCB. The byte read is ; returned in A, on EOF the carry flag will be set. ; fgetc push bc push de push hl ; Check if fcb_file_pointer == fcb_file_size. In this case we have reached ; EOF and will return with a set carry bit. (As a side effect, the attempt to ; read from a file which has not been successfully opened before will be ; handled like encountering an EOF at the first fgetc call.) ld a, (iy + fcb_file_size) cp (iy + fcb_file_pointer) jr nz, fgetc_start ld a, (iy + fcb_file_size + 1) cp (iy + fcb_file_pointer + 1) jr nz, fgetc_start ld a, (iy + fcb_file_size + 2) cp (iy + fcb_file_pointer + 2) jr nz, fgetc_start ld a, (iy + fcb_file_size + 3) cp (iy + fcb_file_pointer + 3) jr nz, fgetc_start ; We have reached EOF, so set carry and leave this routine: scf jp fgetc_exit ; Check if the lower 9 bits of the file pointer are zero. In this case ; we need to read another sector (maybe from another cluster): fgetc_start ld a, (iy + fcb_file_pointer) cp 0 jp nz, fgetc_getc ; Bits 0-7 are not zero ld a, (iy + fcb_file_pointer + 1) and 1 jp nz, fgetc_getc ; Bit 8 is not zero ; The file_pointer modulo 512 is zero, so we have to load the next sector: ; We have to check if fcb_current_cluster == 0 which will be the case in the ; initial run. Then we will copy fcb_first_cluster into fcb_current_cluster. ld a, (iy + fcb_current_cluster) cp 0 jr nz, fgetc_continue ; Not the initial case ld a, (iy + fcb_current_cluster + 1) cp 0 jr nz, fgetc_continue ; Not the initial case ; Initial case: We have to fill fcb_current_cluster with fcb_first_cluste: ld a, (iy + fcb_first_cluster) ld (iy + fcb_current_cluster), a ld a, (iy + fcb_first_cluster + 1) ld (iy + fcb_current_cluster + 1), a jr fgetc_clu2sec ; Here is the normal case - we will check if fcb_cluster_sector is zero - ; in this case we have to determine the next sector to be loaded by looking ; up the FAT. Otherwise (fcb_cluster_sector != 0) we will just get the next ; sector in the current cluster. fgetc_continue ld a, (iy + fcb_cluster_sector) jr nz, fgetc_same ; The current cluster is valid ; Here we know that we need the first sector of the next cluster of the file. ; The upper eight bits of the fcb_current_cluster point to the sector of the ; FAT where the entry we are looking for is located (this is true since a ; sector contains 512 bytes which corresponds to 256 FAT entries). So we must ; load the sector with the number fatstart + fcb_current_cluster[15-8] into ; the IDE buffer and locate the entry with the address ; fcb_current_cluster[7-0] * 2. This entry contains the sector number we are ; looking for. ld hl, (fat1start) ld c, (iy + fcb_current_cluster + 1) ld b, 0 add hl, bc ld de, hl ; Needed for ide_rs ld bc, 0 ld hl, (fat1start + 2) adc hl, bc ld bc, hl ; Needed for ide_rs ld hl, buffer call ide_rs ; Now the sector containing the FAT entry we are looking for is available in ; the IDE buffer. Now we need fcb_current_cluster[7-0] * 2 ld b, 0 ld c, (iy + fcb_current_cluster) sla c rl b ; Now get the entry: ld hl, buffer add hl, bc ld bc, (hl) ld (iy + fcb_current_cluster), c ld (iy + fcb_current_cluster), b ; Now we determine the first sector of the cluster to be read: fgetc_clu2sec ld a, (clusiz) ; Initialize fcb_cluster_sector ld (iy + fcb_cluster_sector), a ld l, (iy + fcb_current_cluster) ld h, (iy + fcb_current_cluster + 1) call clu2sec ; Convert cluster to sector jr fgetc_rs fgetc_same and a ; Clear carry ld bc, 1 ; Increment fcb_current_sector ld l, (iy + fcb_current_sector) ld h, (iy + fcb_current_sector + 1) add hl, bc ld (iy + fcb_current_sector), l ld e, l ; Needed for ide_rs ld (iy + fcb_current_sector + 1), h ld d, h ; Needed for ide_rs ld l, (iy + fcb_current_sector + 2) ld h, (iy + fcb_current_sector + 3) ld bc, 0 adc hl, bc ld (iy + fcb_current_sector + 2), l ld c, l ; Needed for ide_rs ld (iy + fcb_current_sector + 3), h ld b, h ; Neede for ide_rs fgetc_rs ld (iy + fcb_current_sector), e ; Now read the sector ld (iy + fcb_current_sector + 1), d ld (iy + fcb_current_sector + 2), c ld (iy + fcb_current_sector + 3), b ; Let HL point to the sector buffer in the FCB: push iy ; Start of FCB pop hl push bc ld bc, fcb_file_buffer ; Displacement of sector buffer add hl, bc pop bc call ide_rs ; Read a single sector from disk ; Since we have read a sector we have to decrement fcb_cluster_sector dec (iy + fcb_cluster_sector) ; Here we read and return a single character from the sector buffer: fgetc_getc push iy pop hl ; Copy IY to HL ld bc, fcb_file_buffer add hl, bc ; HL points to the sector bfr. ; Get the lower 9 bits of the file pointer as displacement for the buffer: ld c, (iy + fcb_file_pointer) ld a, (iy + fcb_file_pointer + 1) and 1 ; Get rid of bits 9-15 ld b, a add hl, bc ; Add byte offset ld a, (hl) ; get one byte from buffer ; Increment the file pointer: ld l, (iy + fcb_file_pointer) ld h, (iy + fcb_file_pointer + 1) ld bc, 1 add hl, bc ld (iy + fcb_file_pointer), l ld (iy + fcb_file_pointer + 1), h ld bc, 0 ld l, (iy + fcb_file_pointer + 2) ld h, (iy + fcb_file_pointer + 3) adc hl, bc ld (iy + fcb_file_pointer + 2), l ld (iy + fcb_file_pointer + 3), h ; and a ; Clear carry fgetc_exit pop hl pop de pop bc ret ; ; Clear the FCB to which IY points -- this should be called every time one ; creates a new FCB. (Please note that fopen does its own call to clear_fcb.) ; clear_fcb push af ; We have to save so many push bc ; Registers since the FCB is push de ; cleared using LDIR. push hl ld a, 0 push iy pop hl ld (hl), a ; Clear first byte of FCB ld de, hl inc de ld bc, fcb_file_buffer ldir ; And transfer this zero byte pop hl ; down to the relevant rest pop de ; of the buffer. pop bc pop af ret ; ; Dump a file control block (FCB) - the start address is expected in IY. ; dump_fcb push af push hl ld hl, dump_fcb_1 call puts push iy ; Load HL with pop hl ; the contents of IY call print_word ; Print the filename: ld hl, dump_fcb_2 call puts push iy pop hl call puts ; Print file size: ld hl, dump_fcb_3 call puts ld h, (iy + fcb_file_size + 3) ld l, (iy + fcb_file_size + 2) call print_word ld h, (iy + fcb_file_size + 1) ld l, (iy + fcb_file_size) call print_word ; Print cluster number: ld hl, dump_fcb_4 call puts ld h, (iy + fcb_first_cluster + 1) ld l, (iy + fcb_first_cluster) call print_word ; Print file type: ld hl, dump_fcb_5 call puts ld a, (iy + fcb_file_type) call print_byte ; Print file pointer: ld hl, dump_fcb_6 call puts ld h, (iy + fcb_file_pointer + 3) ld l, (iy + fcb_file_pointer + 2) call print_word ld h, (iy + fcb_file_pointer + 1) ld l, (iy + fcb_file_pointer) call print_word ; Print current cluster number: ld hl, dump_fcb_7 call puts ld h, (iy + fcb_current_cluster + 1) ld l, (iy + fcb_current_cluster) call print_word ; Print current sector: ld hl, dump_fcb_8 call puts ld h, (iy + fcb_current_sector + 3) ld l, (iy + fcb_current_sector + 2) call print_word ld h, (iy + fcb_current_sector + 1) ld l, (iy + fcb_current_sector) call print_word call crlf pop hl pop af ret dump_fcb_1 defb "Dump of FCB at address: ", eos dump_fcb_2 defb cr, lf, tab, "File name : ", eos dump_fcb_3 defb cr, lf, tab, "File size : ", eos dump_fcb_4 defb cr, lf, tab, "1st cluster : ", eos dump_fcb_5 defb cr, lf, tab, "File type : ", eos dump_fcb_6 defb cr, lf, tab, "File pointer : ", eos dump_fcb_7 defb cr, lf, tab, "Current cluster: ", eos dump_fcb_8 defb cr, lf, tab, "Current sector : ", eos ; ; Convert a user specified filename to an 8.3-filename without dot and ; with terminating null byte. HL points to the input string, DE points to ; a 12 character buffer for the filename. This function is used by ; fopen which expects a human readable string that will be transformed into ; an 8.3-filename without the dot for the following directory lookup. ; str2filename push af push bc push de push hl ld (str2filename_de), de ld a, ' ' ; Initialize output buffer ld b, $b ; Fill 11 bytes with spaces str2filiniloop ld (de), a inc de djnz str2filiniloop ld a, 0 ; Add terminating null byte ld (de), a ld de, (str2filename_de) ; Restore DE pointer ; Start string conversion ld b, 8 str2filini_nam ld a, (hl) cp 0 ; End of string reached? jr z, str2filini_x cp '.' ; Dot found? jr z, str2filini_ext ld (de), a inc de inc hl dec b jr nz, str2filini_nam str2filini_skip ld a, (hl) cp 0 ; End of string without dot? jr z, str2filini_x ; Nothing more to do cp '.' jr z, str2filini_ext ; Take care of extension inc hl ; Prepare for next character jr str2filini_skip ; Skip more characters str2filini_ext inc hl ; Skip the dot push hl ; Make sure DE points ld hl, (str2filename_de) ; into the filename buffer ld bc, 8 ; at the start position add hl, bc ; of the filename extension ld de, hl pop hl ld b, 3 str2filini_elp ld a, (hl) cp 0 ; End of string reached? jr z, str2filini_x ; Nothing more to do ld (de), a inc de inc hl dec b jr nz, str2filini_elp ; Next extension character str2filini_x pop hl pop de pop bc pop af ret ; ; Open a file with given filename (format: 'FFFFFFFFXXX') in the root directory ; and return the 1st cluster number for that file. If the file can not ; be found, $0000 will be returned. ; At entry, HL must point to the string buffer while IY points to a valid ; file control block that will hold all necessary data for future file accesses. ; fopen push af push bc push de push ix ld (fopen_scr), hl ld hl, fatname ; Check if a disk has been ld a, (hl) ; mounted. cp 0 jp z, fopen_e1 ; No disk - error exit call clear_fcb push iy ; Copy IY to DE pop de ld hl, (fopen_scr) ; Create the filename call str2filename ; Convert string to a filename ld hl, buffer ; Compute buffer overflow ld bc, $0200 ; address - this is the bfr siz. add hl, bc ; and will be used in the loop ld (fopen_eob), hl ; This is the buffer end addr. ; ld hl, (rootstart) ; Remember the initial root ld (fopen_rsc), hl ; sector number ld hl, (rootstart + 2) ld (fopen_rsc + 2), hl ; Read one root directory sector fopen_nbf ld bc, (fopen_rsc + 2) ld de, (fopen_rsc) ld hl, buffer call ide_rs ; Read one sector jp c, fopen_e2 ; Exit on read error fopen_lp ld (fopen_scr), hl xor a ; Last entry? cp (hl) ; The last entry has first jp z, fopen_x ; byte = $0 ld a, $e5 ; Deleted entry? cp (hl) jr z, fopen_nxt ; Get next entry ; ld (fopen_scr), hl ld ix, (fopen_scr) ld a, (ix + $b) ; Get attribute byte cp $0f jr z, fopen_nxt ; Skip long name bit 4, a ; Skip directories jr nz, fopen_nxt ; Compare the filename with the one we are looking for: ld (ix + $b), 0 ; Clear attribute byte ld de, (fopen_scr) push iy ; Prepare string comparison pop hl call strcmp ; Compare filename with string cp 0 ; Are strings equal? jr nz, fopen_nxt ; No - check next entry ld a, (ix + $1a + 1) ; Read cluster number and ; Save cluster_number into fcb_first_cluster: ld (iy + fcb_first_cluster + 1), a ld a, (ix + $1a) ld (iy + fcb_first_cluster), a ld a, (ix + $1c) ; Save file size to FCB ld (iy + fcb_file_size), a ld a, (ix + $1d) ; Save file size to FCB ld (iy + fcb_file_size + 1), a ld a, (ix + $1e) ; Save file size to FCB ld (iy + fcb_file_size + 2), a ld a, (ix + $1f) ; Save file size to FCB ld (iy + fcb_file_size + 3), a ld (iy + fcb_file_type), 1 ; Set file type to found jr fopen_x ; Terminate lookup loop fopen_nxt ld bc, $20 ld hl, (fopen_scr) add hl, bc ld (fopen_scr), hl ld bc, (fopen_eob) ; Check for end of buffer and a ; Clear carry sbc hl, bc ; ...no 16 bit cp :-( jp nz, fopen_lp ; Buffer is still valid ld hl, fopen_rsc ; Increment sector number inc (hl) ; 16 bits are enough :-) jp fopen_nbf ; Read next directory sector fopen_e1 ld hl, fopen_nmn ; No disk mounted jr fopen_err ; Print error message fopen_e2 ld hl, fopen_rer ; Directoy sector read error fopen_err call puts fopen_x pop ix pop de pop bc pop af ret fopen_nmn defb "FATAL(FOPEN): No disk mounted!", cr, lf, eos fopen_rer defb "FATAL(FOPEN): Could not read directory sector!" defb cr, lf, eos ; ; Convert a cluster number into a sector number. The cluster number is ; expected in HL, the corresponding sector number will be returned in ; BC and DE, thus ide_rs or ide_ws can be called afterwards. ; ; SECNUM = (CLUNUM - 2) * CLUSIZ + DATASTART ; clu2sec push af ; Since the 32 bit push hl ; multiplication routine exx ; needs shadow registers push bc ; we have to push many, push de ; many registers here push hl ld bc, 0 ; Clear BC' and DE' for ld de, bc ; 32 bit multiplication exx ld bc, 2 ; Subtract 2 sbc hl, bc ; HL = CLUNUM - 2 ld bc, hl ; BC = HL; BC' = 0 ld a, (clusiz) ld d, 0 ; CLUSIZ bits 8 to 15 ld e, a ; DE = CLUSIZ call MUL32 ; HL = (CLUNUM - 2) * CLUSIZ ld de, (datastart) exx ld de, (datastart + 2) exx call ADD32 ; HL = HL + DATASTART exx push hl exx pop bc ld de, hl exx pop hl pop de pop bc exx pop hl pop af ret ; ; Print a directory listing ; dirlist push af push bc push de push hl push ix ld hl, fatname ld a, (hl) cp 0 jp z, dirlist_nodisk ld ix, string_81_bfr ld (ix + 8), '.' ; Dot between name and extens. ld (ix + 12), 0 ; String terminator ld hl, dirlist_0 ; Print title line call puts ld hl, buffer ; Compute buffer overflow ld bc, $0200 ; address - this is the bfr siz. add hl, bc ld (dirlist_eob), hl ; This is the buffer end addr. ; ld hl, (rootstart) ; Remember the initial root ld (dirlist_rootsec), hl ; sector number ld hl, (rootstart + 2) ld (dirlist_rootsec + 2), hl ; Read one root directory sector dirlist_nbfr ld bc, (dirlist_rootsec + 2) ld de, (dirlist_rootsec) ld hl, buffer call ide_rs jp c, dirlist_e1 dirlist_loop xor a ; Last entry? cp (hl) ; The last entry has first jp z, dirlist_exit ; byte = $0 ld a, $e5 ; Deleted entry? cp (hl) jr z, dirlist_next ld (dirlist_scratch), hl ld ix, (dirlist_scratch) ld a, (ix + $b) ; Get attribute byte cp $0f jr z, dirlist_next ; Skip long name ld de, string_81_bfr ; Prepare for output ld bc, 8 ; Copy first eight characters ldir inc de ld bc, 3 ; Copy extension ldir ; ld hl, de ; ld (hl), 0 ; String terminator ld hl, string_81_bfr call puts ld hl, dirlist_NODIR ; Flag directories with "DIR" bit 4, a jr z, dirlist_prtdir ld hl, dirlist_DIR dirlist_prtdir call puts ld h, (ix + $1c + 3) ; Get and print file size ld l, (ix + $1c + 2) call print_word ld h, (ix + $1c + 1) ld l, (ix + $1c) call print_word ; Get and print start sector ld a, tab call putc ld h, (ix + $1a + 1) ; Get cluster number ld l, (ix + $1a) ld bc, 0 ; Is file empty? and a ; Clear carry sbc hl, bc ; Empty file -> Z set jr z, dirlist_nosize call clu2sec ld hl, bc call print_word ld hl, de call print_word dirlist_nosize call crlf ld hl, (dirlist_scratch) dirlist_next ld bc, $20 add hl, bc ld bc, (dirlist_eob) ; Check for end of buffer and a sbc hl, bc jp nz, dirlist_loop ; Buffer is still valid ld hl, dirlist_rootsec inc (hl) jp dirlist_nbfr dirlist_e1 ld hl, dirlist_1 jr dirlist_x dirlist_nodisk ld hl, dirlist_nomnt dirlist_x call puts dirlist_exit pop ix pop hl pop de pop bc pop af ret dirlist_nomnt defb "FATAL(DIRLIST): No disk mounted!", cr, lf, eos dirlist_0 defb "Directory contents:", cr, lf defb "-------------------------------------------", cr, lf defb "FILENAME.EXT DIR? SIZE (BYTES)" defb " 1ST SECT", cr, lf defb "-------------------------------------------", cr, lf defb eos dirlist_1 defb "FATAL(DIRLIST): Could not read directory sector" defb cr, lf, eos dirlist_DIR defb tab, "DIR", tab, eos dirlist_NODIR defb tab, tab, eos ; ; Perform a disk mount ; fatmount push af push bc push de push hl push ix ld hl, buffer ; Read MBR into buffer ld bc, 0 ld de, 0 call ide_rs jp c, fatmount_e1 ; Error reading MBR? ld ix, buffer + $1fe ; Check for $55AA as MBR trailer ld a, $55 cp (ix) jp nz, fatmount_e2 ld a, $aa cp (ix + 1) jp nz, fatmount_e2 ld bc, 8 ; Get partition start and size ld hl, buffer + $1c6 ld de, pstart ldir ld hl, buffer ; Read partition boot block ld de, (pstart) ld bc, (pstart + 2) call ide_rs jp c, fatmount_e3 ; Error reading boot block? ld bc, 8 ; Copy FAT name ld hl, buffer + 3 ld de, fatname ldir ld ix, buffer ld a, 2 ; Check for two FATs cp (ix + $10) jp nz, fatmount_e4 ; Wrong number of FATs xor a ; Check for 512 bytes / sector cp (ix + $b) jp nz, fatmount_e5 ld a, 2 cp (ix + $c) jp nz, fatmount_e5 ld a, (buffer + $d) ; Get cluster size ld (clusiz), a ld bc, (buffer + $e) ; Get reserved sector number ld (ressec), bc ld bc, (buffer + $16) ; Get FAT size in sectors ld (fatsec), bc ld bc, (buffer + $11) ; Get length of root directory ld (rootlen), bc ld hl, (pstart) ; Compute ld bc, (ressec) ; FAT1START = PSTART + RESSEC add hl, bc ld (fat1start), hl ld hl, (pstart + 2) ld bc, 0 adc hl, bc ld (fat1start + 2), hl ld hl, (fatsec) ; Compute ROOTSTART for two FATs add hl, hl ; ROOTSTART = FAT1START + ld bc, hl ; 2 * FATSIZ ld hl, (fat1start) add hl, bc ld (rootstart), hl ld hl, (fat1start + 2) ld bc, 0 adc hl, bc ld (rootstart + 2), hl ld bc, (rootlen) ; Compute rootlen / 16 sra b ; By shifting it four places rr c ; to the right sra b ; This value will be used rr c ; for the calculation of sra b ; DATASTART rr c sra b rr c ld hl, (rootstart) ; Computer DATASTART add hl, bc ld (datastart), hl ld hl, (rootstart + 2) ld bc, 0 adc hl, bc ld (datastart + 2), hl ld hl, fatmount_s1 ; Print mount summary call puts ld hl, fatname call puts ld hl, fatmount_s2 call puts ld a, (clusiz) call print_byte ld hl, fatmount_s3 call puts ld hl, (ressec) call print_word ld hl, fatmount_s4 call puts ld hl, (fatsec) call print_word ld hl, fatmount_s5 call puts ld hl, (rootlen) call print_word ld hl, fatmount_s6 call puts ld hl, (psiz + 2) call print_word ld hl, (psiz) call print_word ld hl, fatmount_s7 call puts ld hl, (pstart + 2) call print_word ld hl, (pstart) call print_word ld hl, fatmount_s8 call puts ld hl, (fat1start + 2) call print_word ld hl, (fat1start) call print_word ld hl, fatmount_s9 call puts ld hl, (rootstart + 2) call print_word ld hl, (rootstart) call print_word ld hl, fatmount_sa call puts ld hl, (datastart + 2) call print_word ld hl, (datastart) call print_word call crlf jr fatmount_exit fatmount_e1 ld hl, fatmount_1 jr fatmount_x fatmount_e2 ld hl, fatmount_2 jr fatmount_x fatmount_e3 ld hl, fatmount_3 jr fatmount_x fatmount_e4 ld hl, fatmount_4 jr fatmount_x fatmount_e5 ld hl, fatmount_5 fatmount_x call puts fatmount_exit pop ix pop hl pop de pop bc pop af ret fatmount_1 defb "FATAL(FATMOUNT): Could not read MBR!", cr, lf, eos fatmount_2 defb "FATAL(FATMOUNT): Illegal MBR!", cr, lf, eos fatmount_3 defb "FATAL(FATMOUNT): Could not read partition boot block" defb cr, lf, eos fatmount_4 defb "FATAL(FATMOUNT): FAT number not equal two!" defb cr, lf, eos fatmount_5 defb "FATAL(FATMOUNT): Sector size not equal 512 bytes!" defb cr, lf, eos fatmount_s1 defb tab, "FATNAME:", tab, eos fatmount_s2 defb cr, lf, tab, "CLUSIZ:", tab, eos fatmount_s3 defb cr, lf, tab, "RESSEC:", tab, eos fatmount_s4 defb cr, lf, tab, "FATSEC:", tab, eos fatmount_s5 defb cr, lf, tab, "ROOTLEN:", tab, eos fatmount_s6 defb cr, lf, tab, "PSIZ:", tab, tab, eos fatmount_s7 defb cr, lf, tab, "PSTART:", tab, eos fatmount_s8 defb cr, lf, tab, "FAT1START:", tab, eos fatmount_s9 defb cr, lf, tab, "ROOTSTART:", tab, eos fatmount_sa defb cr, lf, tab, "DATASTART:", tab, eos ; ; Dismount a FAT volume (invalidate the FAT control block by setting the ; first byte (of fatname) to zero. ; fatunmount push af push hl xor a ld hl, fatname ld (hl), a pop hl pop af ret ; defb "THE MONITOR ENDS HERE...", eos
